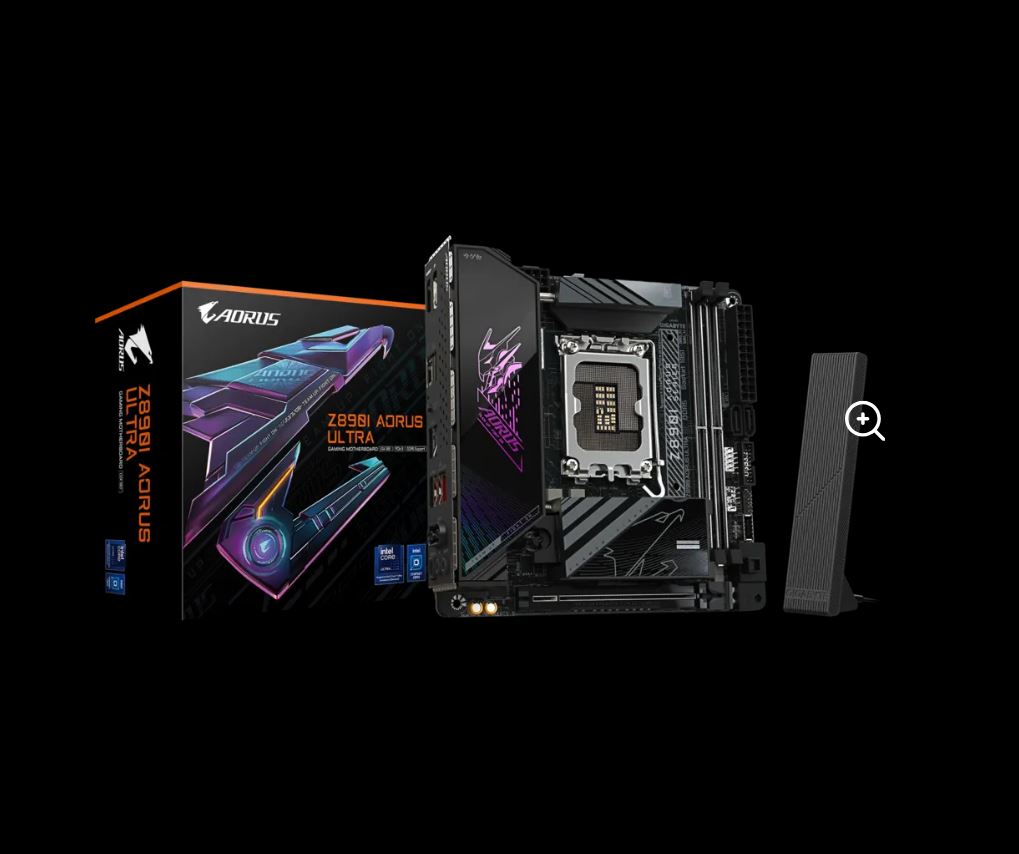

4719331864804 Gigabyte Z890I AORUS ULTRA Intel LGA 1851 m-ITX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 2x SATA, 5x USB 3.2, 1x USB-C

4719331864804 Gigabyte Z890I AORUS ULTRA Intel LGA 1851 m-ITX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 2x SATA, 5x USB 3.2, 1x USB-C

(0 review)

Product Code: 4719331864804

Gigabyte Z890I AORUS ULTRA Intel LGA 1851 m-ITX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 2x SATA, 5x USB 3.2, 1x USB-C
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset Intel® Z790 Express Chipset
Memory
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz
* Support for DisplayPort 1.4 version and HDCP 2.3
* The DisplayPort does not support HDMI connection by adapter
Storage Interface
CPU:1 x M.2 connector on the back of the GC-Z790I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x SATA 6Gb/s connectors
USB
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0///1.1 ports on the back panel
Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the USB headers

$ 700.92 $ 700.92 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

GIGABYTE Z890I AORUS ULTRA Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 8+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM

GIGABYTE Z890I AORUS ULTRA Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 8+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel

Processor
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Maximum internal memory supported by processor256
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600
Supported memory clock speed (max)8800
Maximum internal memory256
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported2
RAID supportYes
RAID levels0, 1, 5, 10
Graphics
DirectX version12.0
Internal I/O
USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors2
Total number of SATA connectors2
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity1
Microphone inYes
S/PDIF out portYes
Thunderbolt ports quantity1
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelIntel Wi-Fi 7 BE202
BluetoothYes
Bluetooth version5.4
Features
Motherboard chipsetIntel Z890
Audio output channels7.1
Product colourBlack
PC health monitoringFan, Temperature, Voltage
Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
Expansion slots
PCI Express x16 slots1
Number of M.2 (M) slots2
BIOS
BIOS typeUEFI AMI
BIOS memory size256
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Logistics data
Country of originChina
Products per shipping (inner) case1
Battery
Battery weight3
Lithium weight per battery0.0700
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Packaging data
Package width265
Package depth235
Package height97
Package weight1.64
Weight & dimensions
Width170
Depth170
Height35
Packaging content
Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight1.42
Technical details
Warranty period3

Specifications

Brand Gigabyte
