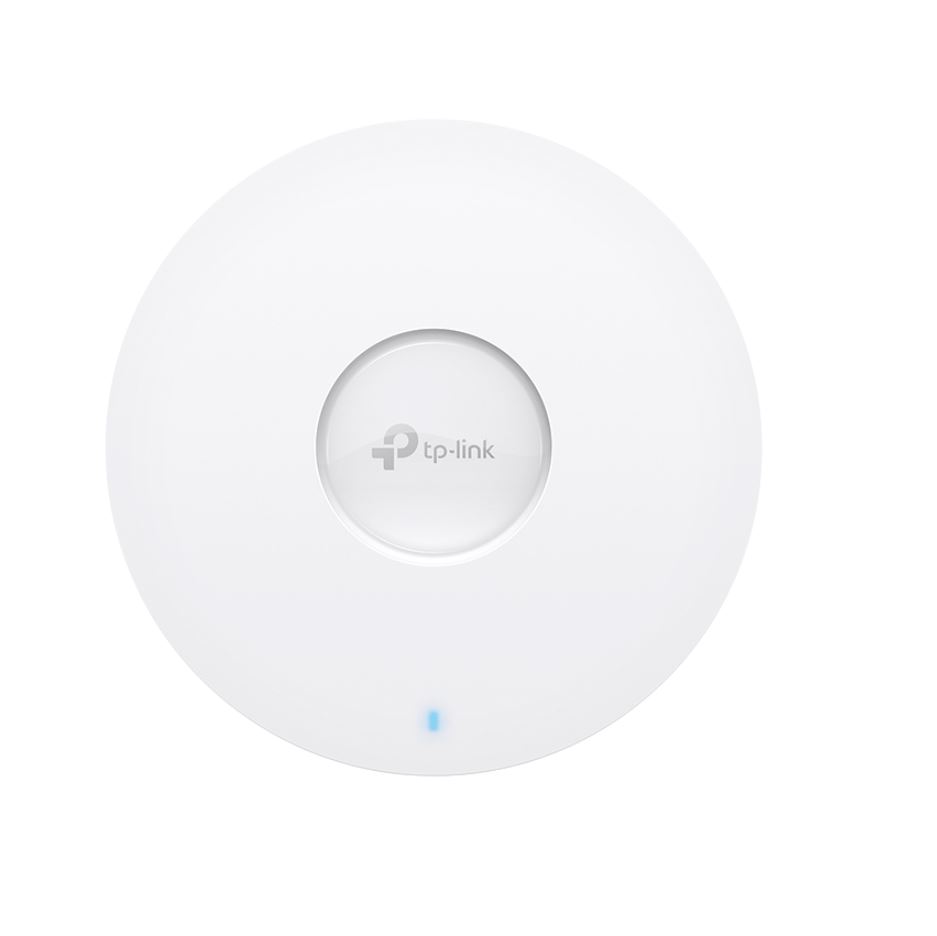

4895252500516 TP-Link EAP613 Omada AX1800 Ceiling Mount WiFi 6 Access Point

4895252500516 TP-Link EAP613 Omada AX1800 Ceiling Mount WiFi 6 Access Point

(0 review)

Product Code: 4895252500516

AX1800 Ceiling Mount WiFi 6 Access Point
Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralised Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§

$ 159.00 $ 159.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 1775 Mbit/s, HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3, 100,1000 Mbit/s

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1775 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10.6 W

Features
2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate1775
Maximum data transfer rate (2.4 GHz)574
Maximum data transfer rate (5 GHz)1201
Ethernet LAN data rates100,1000
Frequency band2.4 - 5
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selectionYes
Automatic channel scanningYes
MIMOYes
MIMO typeMulti User MIMO
Spread spectrum methodOFDMA
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Rate limitingYes
Wireless isolationYes
Band steeringYes
Airtime Fairness (ATF)Yes
BeamFormingYes
Transmitting power (CE)<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Transmitting power (FCC)<25 dBm (2.4 GHz); <25 dBm (5 GHz)
Security
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Number of SSID supported16
Management features
Web-based managementYes
Management platformOmada
Ports & interfaces
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Power
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPassive PoE
DC voltage range12
Input current1
Power consumption (typical)9.6
Power consumption (max)10.6
Design
PlacementCeiling, Wall
Product colourWhite
Reset buttonYes
LED indicatorsYes
Antenna
Antenna typeInternal
Antennas quantity4
Antenna gain level (max)5
Performance
Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Certificates
CertificationCE, FCC, RoHS
Weight & dimensions
Width160
Depth160
Height33.6
Packaging content
Quantity per pack1
Mounting kitYes
Quick start guideYes
Operational conditions
Operating relative humidity (H-H)0 - 40
Operating temperature (T-T)10 - 90
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Specifications

Brand TP-Link
Manufacturer TP-Link
