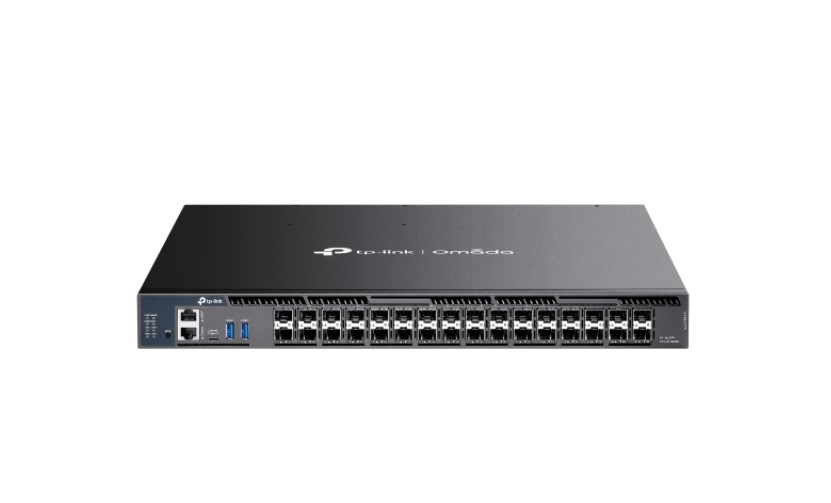

TP-Link SX6632YF, Managed, L2+/L3, Rack mounting
TP-Link SX6632YF. Switch type: Managed, Switch layer: L2+/L3. Console port: RJ-45. MAC address table: 128000 entries, Switching capacity: 820 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah. Rack mounting
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP module slots quantity | 6 |
| SFP+ module slots quantity | 26 |
| USB Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| Number of management ports | 1 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Data transmission | |
| Switching capacity | 820 |
| Forwarding rate | 610.1 |
| MAC address table | 128000 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 8 |
| Security | |
| DHCP features | DHCP Option 82 |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3 |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 4 |
| Performance | |
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
| Power | |
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 380 |
| Height | 44 |
| Packaging content | |
| Cables included | Power |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
