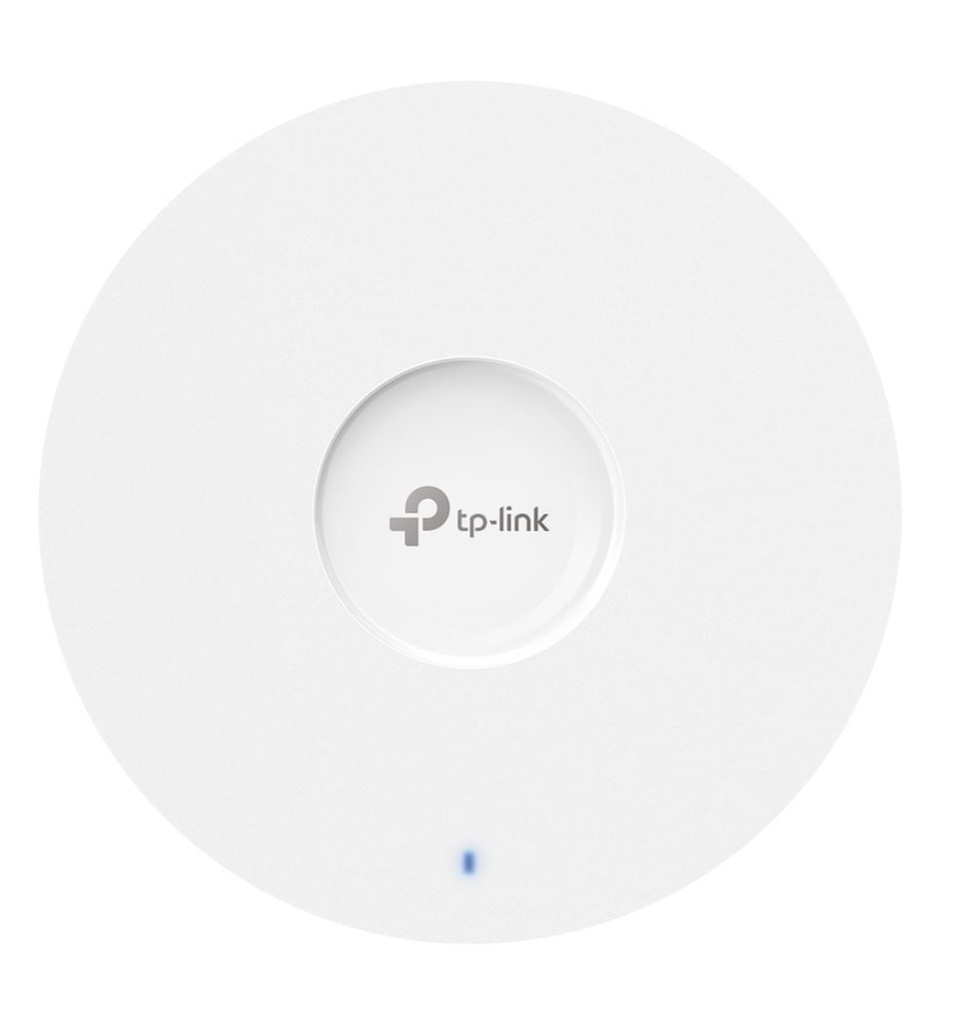

4895252506464 TP-Link EAP683 LR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point, 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5952 Mbps

4895252506464 TP-Link EAP683 LR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point, 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5952 Mbps

(0 review)

Product Code: 4895252506464

EAP683 LR AX6000 Ceiling Mount Wi-Fi 6 Access Point
Blazing-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5952 Mbps Wi-Fi speeds.†
High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds.
Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.

$ 329.00 $ 329.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 6000 Mbit/s, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, 10,100,1000,2500 Mbit/s

TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 6000 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Features
2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate6000
Maximum data transfer rate (2.4 GHz)1148
Maximum data transfer rate (5 GHz)4804
Ethernet LAN data rates10,100,1000,2500
Frequency band2.4 - 6
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Number of users510
Automatic channel selectionYes
Automatic channel scanningYes
MIMOYes
MIMO typeMulti User MIMO
Fast roamingYes
VLAN supportYes
Rate limitingYes
Band steeringYes
Airtime Fairness (ATF)Yes
Quality of Service (QoS) supportYes
BeamFormingYes
Security
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, SSH
MAC address filteringYes
Service Set Identifier (SSID) featuresMultiple SSIDs
Access Control List (ACL)Yes
Management features
SyslogYes
Firmware upgradeableYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Power
Power over Ethernet (PoE)Yes
DC voltage range12
Design
PlacementCeiling, Wall
Product colourWhite
Reset buttonYes
LED indicatorsYes
Antenna
Antenna typeInternal
Antenna direction typeOmni-directional
Antenna gain level (max)5
Certificates
Compliance certificatesCE, RoHS
Weight & dimensions
Width220
Depth220
Height32.5
Packaging data
Package typeBox
Packaging content
Quantity per pack1
Mounting kitYes
Quick start guideYes
Operational conditions
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Specifications

Brand TP-Link
Manufacturer TP-Link
