4897098683064 TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE - IEEE 802.3u, 20KM, 1310 nm TX, 1550 nm RX

4897098683064 TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE - IEEE 802.3u, 20KM, 1310 nm TX, 1550 nm RX

(0 review)

Product Code: 4897098683064

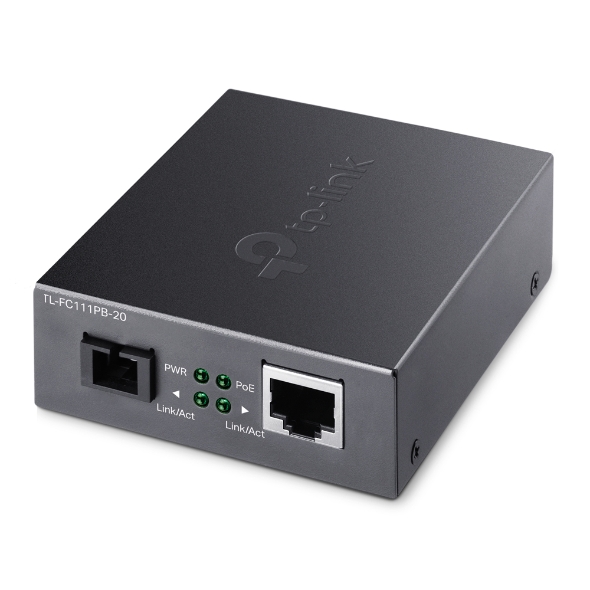

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE
• Converts the data between fiber (optical signal) and copper (electric signal).
• Extends fiber distance up to 20 km.
• The 802.3af PoE output makes remote camera deployment easier and more convenient.
• WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
• Wide operating temperature (0–50 ℃) with reliability.
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
NETWORK
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature 0–50 °C (32–122 °F)
Storage Temperature -40–70 °C (-40–158 °F)
Operating Humidity 10–90% RH non-condensing
Storage Humidity 5–90% RH non-condensing
HARDWARE FEATURES
Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply 48 V/0.5 A
LED PWR, Link/Act, PoE
Dimensions ( W x D x H ) (94.5×73.0×27.0 mm)
Wave Length 1310 nm TX, 1550 nm RX
ANTENNA
Connector Type • 1× 10/100 Mbps PoE RJ45 port
• 1× 100 Mbps SC fiber port
MEDIA CONVERTER MODULE
Fiber Type 9/125 μm single-mode fber (≤20 km)

$ 59.00 $ 59.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link 10/100Mbps WDM Media Converter with 1-Port PoE, 100 Mbit/s, 100 m, 9/125 µm, Black, SC, Wired

TP-Link 10/100Mbps WDM Media Converter with 1-Port PoE. Maximum data transfer rate: 100 Mbit/s. Maximum transfer distance: 100 m, Fiber cable diameters supported (core/cladding): 9/125 µm. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 48 V, Input current: 0.5 A

Network
Maximum data transfer rate100
Performance
Maximum transfer distance100
Fiber cable diameters supported (core/cladding)9/125
Features
InternalNo
LED indicatorsYes
Product colourBlack
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
DC-in jackYes
Power
Input voltage48
Input current0.5
Weight & dimensions
Width94.5
Depth73
Height27
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Packaging content
AC adapter includedYes
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand TP-Link
Manufacturer TP-Link
