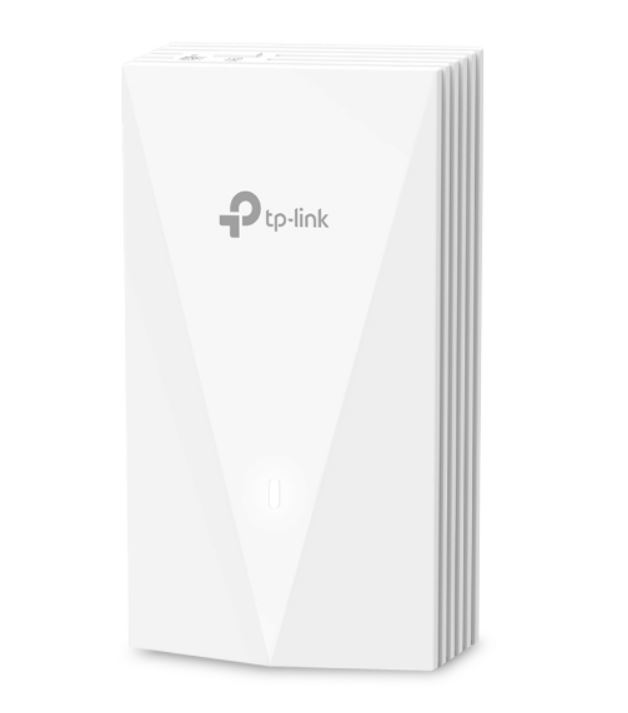

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point, 2.4 GHz, 5 GHz, 2402 Mbit/s, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, 10,100,1000 Mbit/s
TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2402 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2402 |
| Maximum data transfer rate (2.4 GHz) | 574 |
| Maximum data transfer rate (5 GHz) | 2402 |
| Ethernet LAN data rates | 10,100,1000 |
| Frequency band | 2.4, 5 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 100 |
| Automatic channel selection | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 - 23 - 26 |
| Transmitting power (FCC) | 21 - 21 |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 12 |
| Design | |
| Placement | Wall |
| Product colour | White |
| Cable lock slot | No |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC, RoHS |
| Weight & dimensions | |
| Width | 143 |
| Depth | 86 |
| Height | 42.6 |
| Packaging data | |
| Package width | 117 |
| Package depth | 184 |
| Package height | 56 |
| Package weight | 400 |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
