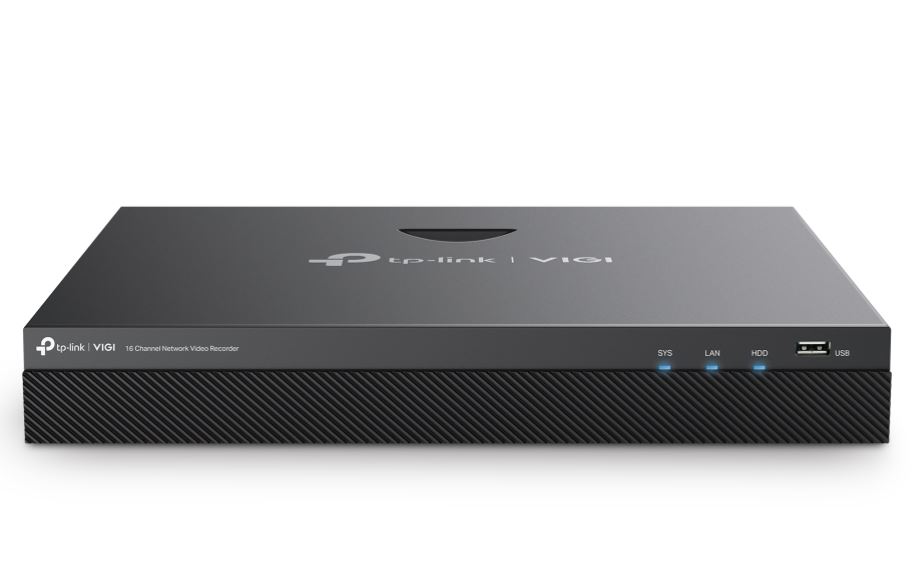

4897098683880 TP-Link VIGI NVR2016H 16 Channel Network Video Recorder, 4K Out, 16MP Decode, H.265+, ONVIF, 2-Way Audio, Remote Monitoring (HDD Not Included)

4897098683880 TP-Link VIGI NVR2016H 16 Channel Network Video Recorder, 4K Out, 16MP Decode, H.265+, ONVIF, 2-Way Audio, Remote Monitoring (HDD Not Included)

(0 review)

Product Code: 4897098683880

VIGI NVR2016H
VIGI 16 Channel Network Video Recorder
4K HDMI Video Output 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Plug Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days‡) from connected cameras to secure your data for quick, convenient access.
Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

$ 259.00 $ 259.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link VIGI NVR2016H, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz,..., G.711 A-law, G.711 μ-law, G.726

TP-Link VIGI NVR2016H. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 24.16 W, Output current: 3.3 A, Output voltage: 12 V

Performance
Video input channels16
Number of simultaneously playbacked channels16
Video recording modes720p, 1080p
Maximum resolution3840 x 2160
Supported resolutionsHDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Playback controlsYes
Maximum frame rate30
Input bandwidth80
Output bandwidth60
Recording modesManual, Schedule
Wireless LAN features
Wi-FiNo
Hard drive
HDD capacity0
Number of HDDs supported2
Maximum storage capacity10
HDD interfaceSATA
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
eSATA ports quantity1
Internal SATA ports quantity2
eSATAYes
Line-inYes
Audio output1
DC-in jackYes
Supported network protocolsUPnP (Plug and Play), NTP (Network Timing)
Features
Reset buttonYes
Product colourBlack
CertificationCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Power
Power consumption (max)24.16
Output current3.3
Output voltage12
Operational conditions
Operating temperature (T-T)-10 - 55
Operating relative humidity (H-H)10 - 90
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)10 - 90
Weight & dimensions
Width330
Depth285
Height45
Weight1.9
Package weight3.2

Specifications

Brand TP-Link
Manufacturer TP-Link
