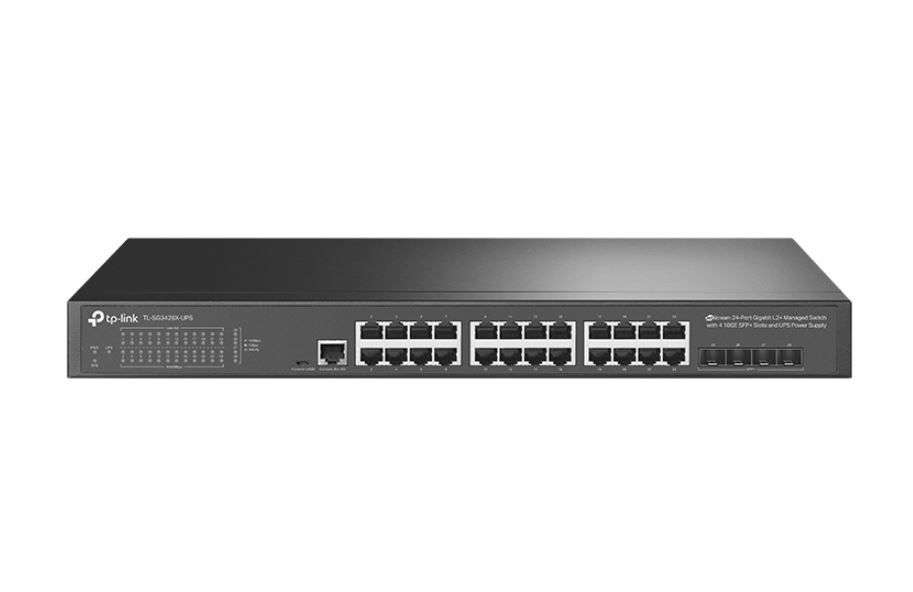

TP-Link JetStream TL-SG3428X-UPS, Managed, L2+/L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
TP-Link JetStream TL-SG3428X-UPS. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 128 |
| Forwarding rate | 95.23 |
| MAC address table | 16000 |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 31.9 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 108.84 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Package type | Box |
| Certificates | |
| Certification | CE, FCC, RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
