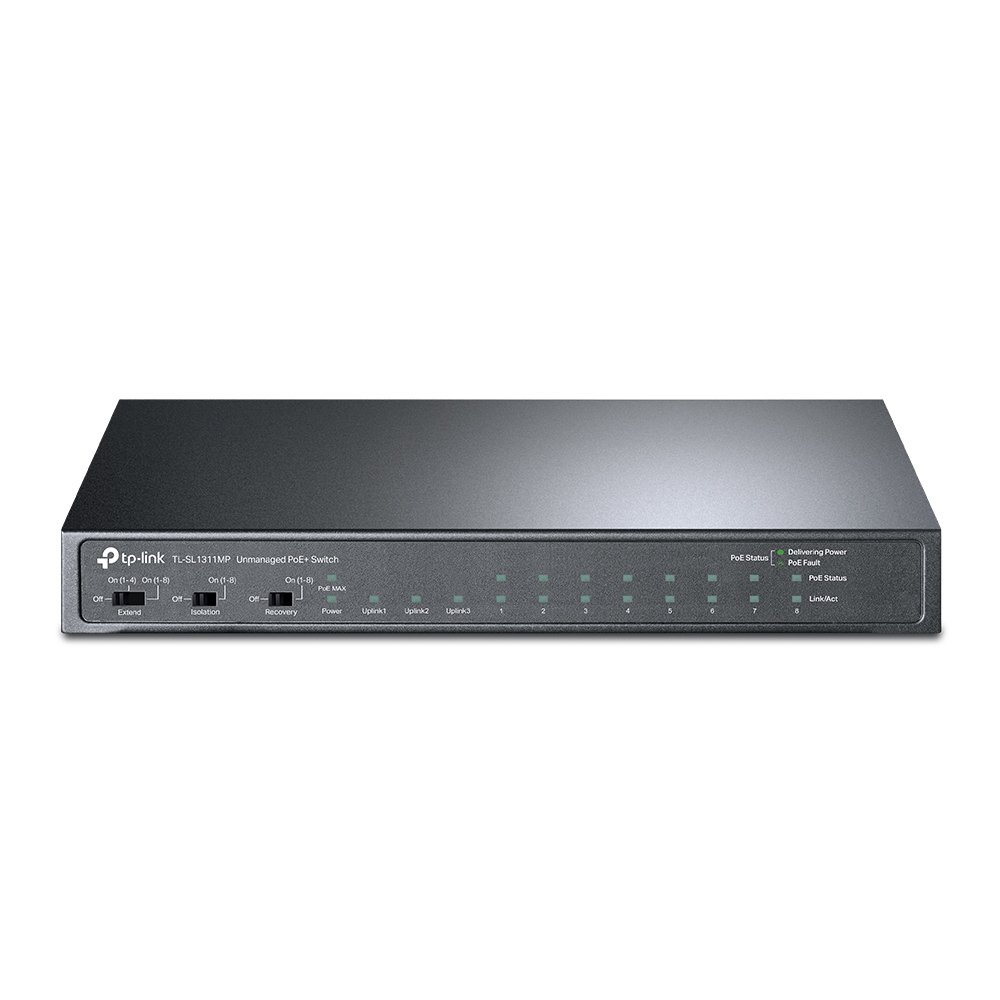

6935364006259 TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

Product Code: 6935364006259

TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
• 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• 8× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 124 W for 8 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required
HARDWARE FEATURES
Interface • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate 5.6544 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 124 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 7.6 Gbps
Dimensions ( W x D x H ) 209 × 126 × 26 mm
Max Power Consumption • 5.95 W (220/50 Hz. no PD connected)
• 140.92 W (220/50 Hz. with 124 W PD connected)
Max Heat Dissipation • 20.29 BTU/h (no PD connected)
• 480.54 BTU/h (220/50 Hz. with 124 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode
