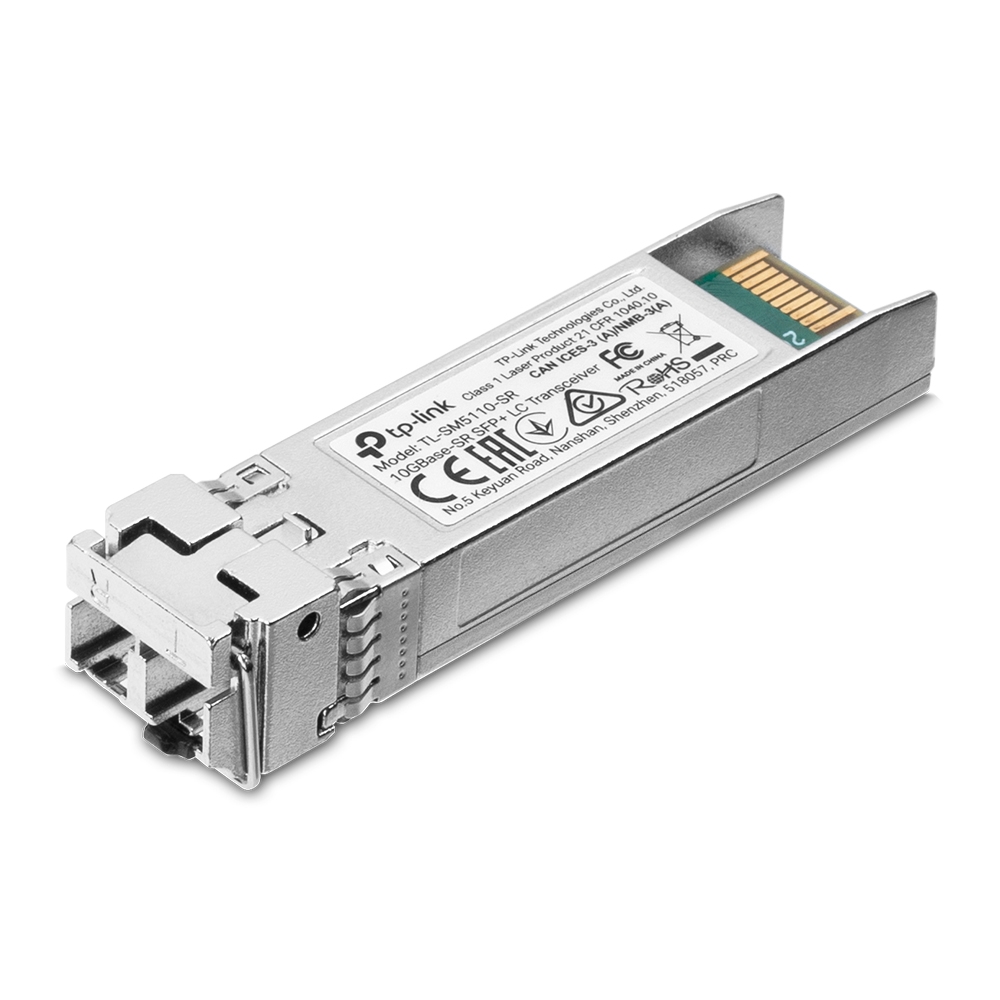

6935364006297 TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Digital Diagnostic Monitoring SFP+ MSA Compatible

6935364006297 TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Digital Diagnostic Monitoring SFP+ MSA Compatible

(0 review)

Product Code: 6935364006297

TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Supports Digital Diagnostic Monitoring SFP+ MSA Compatible
Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE 802.3ae, TCP/IP, SFF-8472
Wave Length 850nm
Power Supply 3.3V
Fiber Type 50/125um or 62.5/125um Multi-mode
Max. Cable Length 300m (OM3)
Data Rate 10Gbps
Port Type LC/UPC
Safety Emission FCC, CE
Environment Operating Temperature: 0–70 ℃ (32–158 ℉)
Storage Temperature: -40–80 ℃ (-40–176 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

$ 49.00 $ 49.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link 10GBase-SR SFP+ LC Transceiver, Fiber optic, 10000 Mbit/s, SFP+, LC (UPC), 50/125,62.5/125 µm, 300 m

TP-Link 10GBase-SR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 14.5 mm, Depth: 61.3 mm, Height: 12.2 mm

Performance
SFP transceiver typeFiber optic
Maximum data transfer rate10000
Interface typeSFP+
Multi-mode fiber (MMF) supportedYes
Fiber optic connectorLC (UPC)
Fiber cable diameters supported (core/cladding)50/125,62.5/125
Maximum transfer distance300
Wavelength850
Digital Diagnostics Monitoring (DDM)Yes
Features
Product colourSilver
Hot-swapYes
Power
Input voltage3.3
Certificates
CertificationFCC, CE
Operational conditions
Operating temperature (T-T)0 - 70
Storage temperature (T-T)-40 - 80
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Weight & dimensions
Width14.5
Depth61.3
Height12.2
Packaging data
Package width81.5
Package depth122.5
Package height38.5
Package weight60
Logistics data
Harmonized System (HS) code85369010

Specifications

Brand TP-Link
Manufacturer TP-Link
