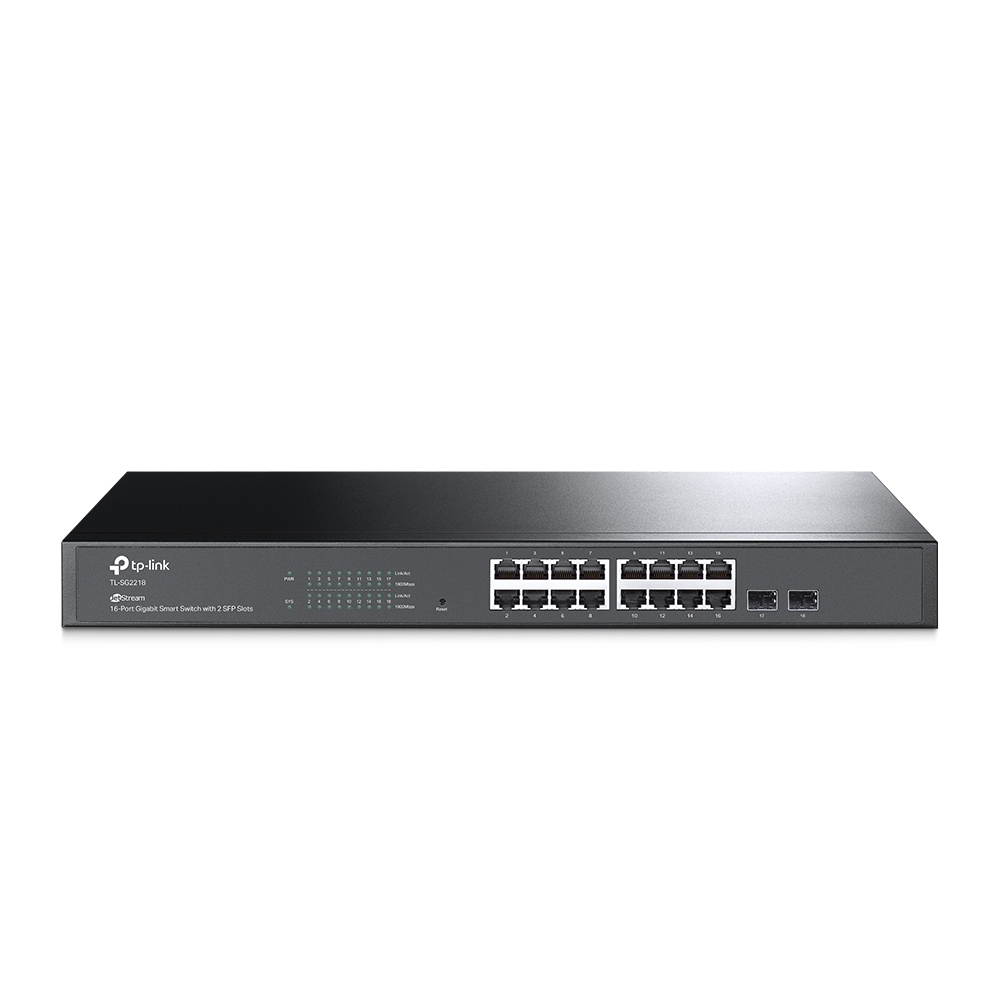

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 36 |
| Forwarding rate | 26.8 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Static route | Yes |
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 12.3 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 41.97 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
