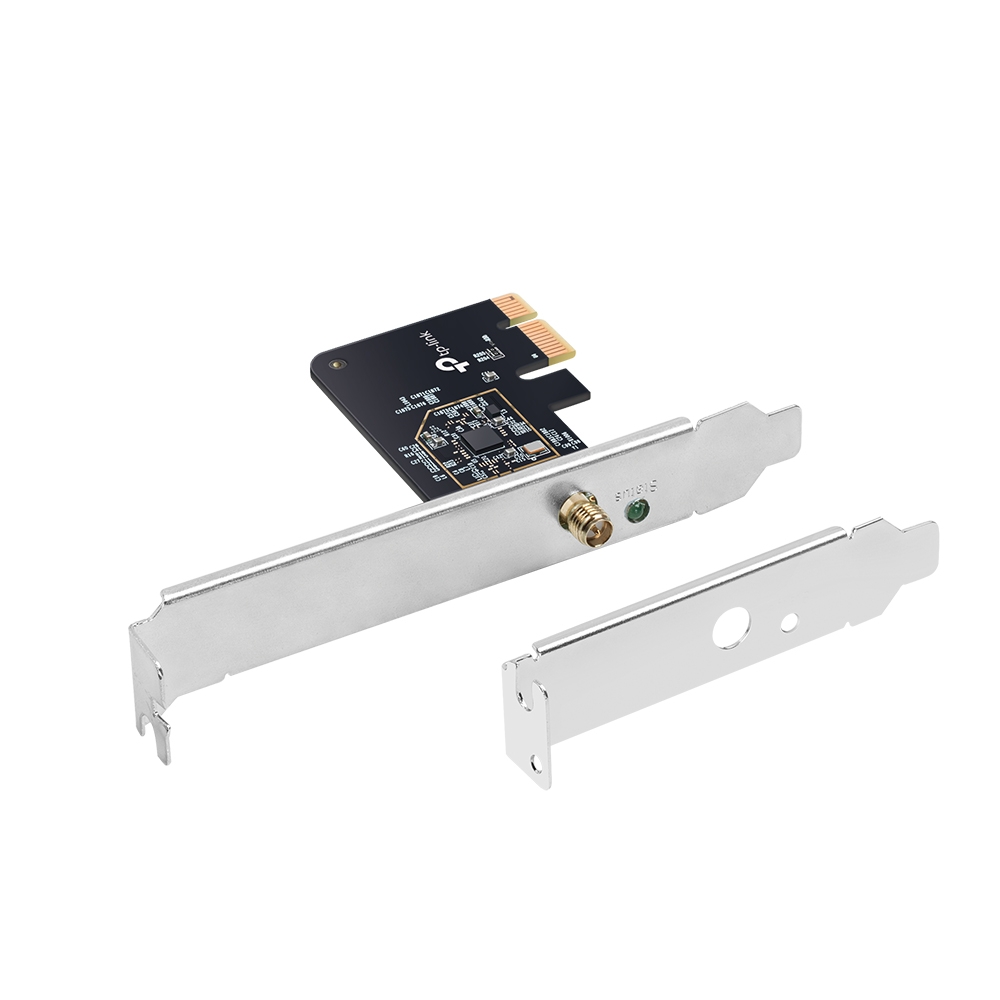

6935364006518 TP-Link Archer T2E AC600 Wireless Dual Band PCI Express Adapter, 433Mbps @ 5Ghz, 200Mbps @ 2.4Ghz, 1× High Gain External Antennas

Product Code: 6935364006518

AC600 Wireless Dual Band PCI Express Adapter
AC600 Dual Band WiFi – Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)
MU-MIMO Supported – Boost network throughput and efficiency when working with a compatible MU-MIMO router
Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with a powerful signal-boosting high-gain antenna
WPA3 Supported – Improve cybersecurity with more secure and individualized protection
Low-Profile and Full-Height Brackets - Customized options give you the flexibility to find a bracket that perfectly fits your board design
HARDWARE FEATURES
Interface PCI Express
Dimensions 4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm)
Antenna 1 Detachable External Antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Signal Rate 5 GHz:
11ac: Up to 433 Mbps(dynamic)
11n: Up to 200 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 200 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity 5GHz:
11ac HT80:-59.0dBm
11n HT40:-68.0dBm
11a 54Mbps:-73.0dBm
11a 6Mbps:-90.0dBm
2.4GHz:
11n HT40:-70dBm
11g 54Mbps:-75dBm
11b 11Mbps:-87dBm
Transmit Power 5GHz:18dBm(FCC)/23dBm(CE)(EIRP)
2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP)
Wireless Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification FCC, CE, RoHS
Package Contents AC600 Wireless Dual Band PCI Express Adapter
Archer T2E
Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements Windows 10
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
