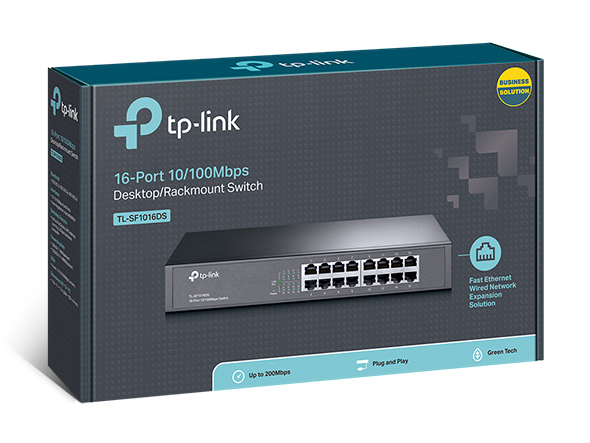

6935364021535 TP-Link TL-SF1016DS 16-Port 10/100Mbps Smart Switch or wall-mounting design Plug and play 3.2Gbps Switching Capacity Auto-MDI/MDIX Supports MAC(LS)

6935364021535 TP-Link TL-SF1016DS 16-Port 10/100Mbps Smart Switch or wall-mounting design Plug and play 3.2Gbps Switching Capacity Auto-MDI/MDIX Supports MAC(LS)

(0 review)

Product Code: 6935364021535

Innovative energy-efficient technology saves power up to 75%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
3.2 Gbps Switching Capacity
Store and forward Switching scheme
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
Plug and Play design simplifies installation
Fanless design to make sure it works quietly

$ 79.00 $ 79.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link TL-SF1016DS, Unmanaged, Fast Ethernet (10/100), Rack mounting, 1U

TP-Link TL-SF1016DS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U

Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity16
Network
Networking standardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Flow control supportYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100
Auto-negotiationYes
Data transmission
Switching capacity3.2
Throughput2.38
MAC address table8000
Store-and-forwardYes
Packet buffer memory2
Security
Static port securityYes
Protocols
Supported network protocolsTCP/IP
Design
Rack mountingYes
StackableNo
Form factor1U
Product colourBlack
Housing materialMetal
Redundant fans supportYes
Number of fans0
Performance
FanlessYes
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240
AC input frequency50/60
Power consumption (max)2.06
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Heat dissipation7.03
Weight & dimensions
Width294
Depth180
Height44
Packaging content
Cables includedAC
User guideYes
Rack mount kitYes
Packaging data
Rubber feetYes
Package width250
Package depth400
Package height80
Package weight1.95
Sustainability
Sustainability complianceYes
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
CertificationFCC, RoHS

Specifications

Brand TP-Link
Manufacturer TP-Link
