6935364030414 TP-Link MC111CS 10/100Mbps SC WDM Media Converter Monomode Simplex 10/100Base-TX, 100Base-FX standards Link Fault Passthrough and Far End Fault(LS)

6935364030414 TP-Link MC111CS 10/100Mbps SC WDM Media Converter Monomode Simplex 10/100Base-TX, 100Base-FX standards Link Fault Passthrough and Far End Fault(LS)

(0 review)

Product Code: 6935364030414

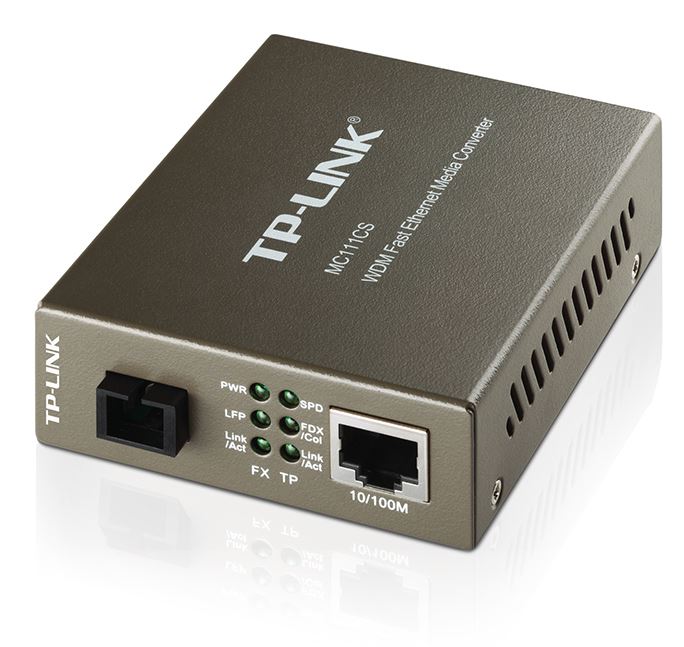

TP-Link MC111CS 10/100Mbps WDM Media Converter
Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Adopts WDM technology, transmitting and receiving data on one single fiber
MEDIA CONVERTER MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Extends fiber distance up to 20km
Ports 1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)
Wave Length 1550nm Tx/1310nm Rx
WDM TX 1550nm
WDM RX 1310nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, FDX/Col, Link/Act, SPD
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 2.49W
Safety Emission FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What This Product Does
The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving

$ 39.00 $ 39.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link 10/100Mbps WDM Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, Cat3, Cat4, Cat5, Cat5e

TP-Link 10/100Mbps WDM Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 20000 m, Wavelength: 1550 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 1.23 W

Network
Maximum data transfer rate1000
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates1000
Fiber ethernet cabling technology100BASE-FX
Auto MDI/MDI-XYes
Cable types supportedCat3, Cat4, Cat5, Cat5e
Performance
Maximum transfer distance20000
Wavelength1550
Fiber mode structureSingle-mode
Features
InternalNo
LED indicatorsActivity, Power
Product colourBlack
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
Power
Power consumption (max)1.23
Weight & dimensions
Width94.5
Depth73
Height27
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Packaging data
Package width165
Package depth204
Package height65
Package weight370
Certificates
Compliance certificatesRoHS
CertificationFCC, CE
Other features
I/O ports1x 100M SC 1x 100M RJ45
Full duplexYes

Specifications
