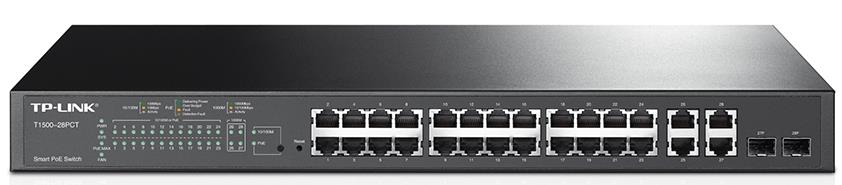

6935364030612 TP-Link T1500-28PCT (TL-SL2428P) JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ Switch, Omada

6935364030612 TP-Link T1500-28PCT (TL-SL2428P) JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ Switch, Omada

(0 review)

Product Code: 6935364030612

TP-Link T1500-28PCT (TL-SL2428P) JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ Switch
Features 24 PoE ports, with total PoE power budget of 192W and useful PoE power management features
Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
WEB/CLI managed modes, SNMP, RMON bring abundant management features
Dual Firmware Image improves reliability and up-time of your network
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface 24 10/100Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Combo Gigabit SFP Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity 2
Physical Security Lock Yes
PoE Budget 192W
Dimensions ( W x D x H ) 17.3*8.7*1.7 in.(440*220*44 mm)
Mounting Rack Mountable
Max Power Consumption 21.7W (220V/50Hz with no PD connected)
229.73W (110V/60Hz with 192W PD connected)
Max Heat Dissipation 74.04 BTU/h (with no PD connected)
783.84 BTU/h (with 192W PD connected)
PERFORMANCE
Bandwidth/Backplane 12.8Gbps
Packet Forwarding Rate 9.5Mpps
MAC Address Table 8k
Jumbo Frame 9216 Bytes

$ 419.00 $ 419.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link Omada SL2428P, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U

TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity24
Gigabit Ethernet (copper) ports quantity4
Combo SFP ports quantity2
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat5, Cat5e
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs512
Data transmission
Switching capacity12.8
Throughput9.5
MAC address table8000
Number of queues4
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1
Security
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithmsSNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL supportYes
Multicast features
Multicast supportYes
Protocols
Management protocolsSNMP v1/v2c/v3, RMON, SNTP, TFTP
Design
Rack mountingYes
Form factor1U
Product colourBlack
Number of fans2
Performance
Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Firmware upgradeableYes
Power
Power sourceAC
AC input voltage100 - 240
AC input frequency50/60
Power consumption (max)291.6
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget250
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Heat dissipation995.09
Weight & dimensions
Width440
Depth180
Height44
Packaging content
Cables includedAC
Quick start guideYes
Rack mount kitYes
Certificates
CertificationCE, FCC, RoHS

Specifications

Brand TP-Link
Manufacturer TP-Link
