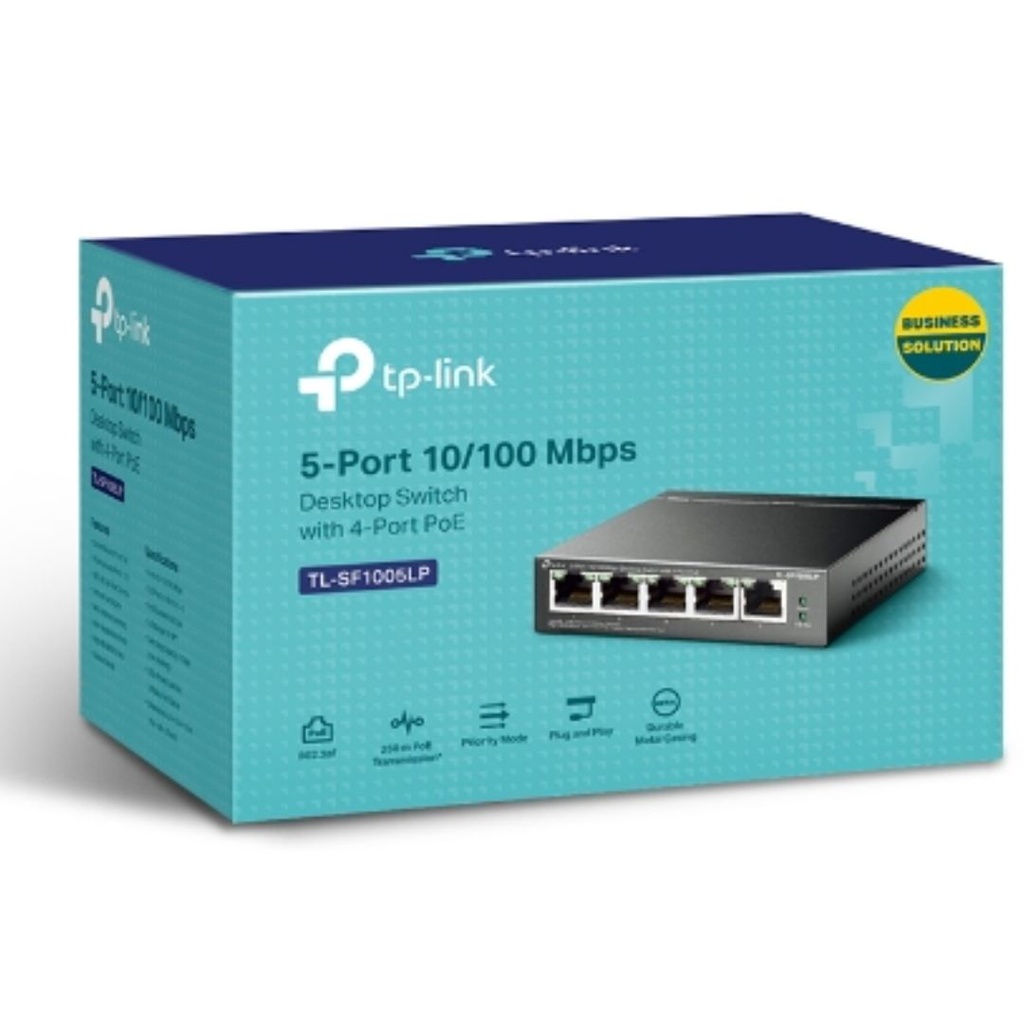

6935364052782 TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching

6935364052782 TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching

(0 review)

Product Code: 6935364052782

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
• 5× 10/100 Mbps RJ45 ports
• 4× PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250 m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports*
• Plug and play with no configuration required
HARDWARE FEATURES
Interface • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) • Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption • 1.9 W (220 V / 50 Hz, no PD connected)
• 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation • 6.48 BTU/h(no PD connected)
• 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SF1005LP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH

$ 59.00 $ 59.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Network
Networking standardsIEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Cable types supportedCat3, Cat4, Cat5, Cat5e
Full duplexYes
Half duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-aging supportedYes
Data transmission
Switching capacity1
Forwarding rate0.744
MAC address table2000
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames2000
Design
Rack mountingNo
Product colourBlack
LED indicatorsYes
Performance
FanlessYes
Power
Power sourceDC/PoE
Power supply includedYes
AC input voltage220
AC input frequency50
Input current0.81
Input voltage53.5
Power consumption (max)47
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Total Power over Ethernet (PoE) budget41
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Heat dissipation160.27
Weight & dimensions
Width100
Depth98
Height25
Packaging content
User guideYes
Packaging data
AC adapter includedYes
Package width131
Package depth196
Package height121
Package weight740
Sustainability
Sustainability complianceYes
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand TP-Link
Manufacturer TP-Link
