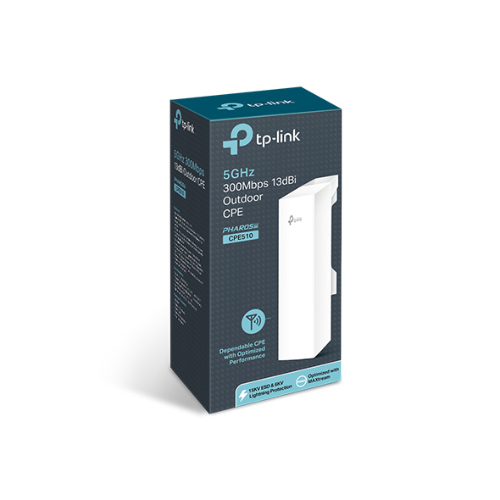

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE, 5 GHz, 300 Mbit/s, AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100 Mbit/s
TP-Link 5GHz 300Mbps 13dBi Outdoor CPE. 5 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Features | |
|---|---|
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 300 |
| Maximum data transfer rate (5 GHz) | 300 |
| Ethernet LAN data rates | 10,100 |
| Throughput data rate | 300 |
| Frequency band | 5.15 - 5.85 |
| Bandwidth | 5 |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Wireless isolation | Yes |
| Maximum outdoor range | 15000 |
| Receiver sensitivity | 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Security | |
| Security algorithms | AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast, SSID broadcast on/off |
| IGMP snooping | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Protocols | |
| Universal Plug and Play (UPnP) | Yes |
| Management protocols | TDMA |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Management platform | Pharos Control |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 16 - 27 |
| Power consumption (typical) | 13 |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP5X |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 13 |
| Performance | |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 560 |
| Processor architecture | MIPS 74Kc |
| Flash memory | 8 |
| Internal memory | 64 |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Certificates | |
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS |
| Weight & dimensions | |
| Width | 224.4 |
| Depth | 79 |
| Height | 60.3 |
| Packaging data | |
| Package width | 132 |
| Package depth | 270 |
| Package height | 106 |
| Package weight | 720 |
| Packaging content | |
| Quantity per pack | 1 |
| PoE adapter included | Yes |
| Cables included | AC |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -30 - 70 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
