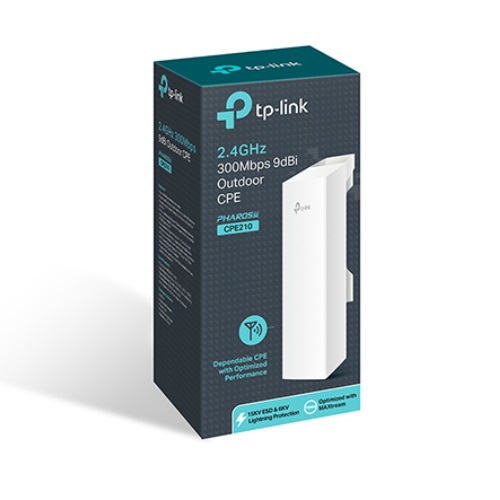

TP-Link CPE210, 2.4 GHz, 300 Mbit/s, AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
TP-Link CPE210. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Power over Ethernet (PoE). Product colour: White
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Maximum data transfer rate | 300 |
| Frequency band | 2.4 - 2.483 |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| VLAN support | Yes |
| Wireless isolation | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Maximum outdoor range | 5000 |
| Security | |
| Security algorithms | AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast, SSID broadcast on/off |
| IGMP snooping | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Protocols | |
| Universal Plug and Play (UPnP) | Yes |
| Management features | |
| Web-based management | Yes |
| Management platform | Pharos Control |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Output voltage | 24 |
| Output current | 0.25 |
| Design | |
| Placement | Pole |
| Product colour | White |
| International Protection (IP) code | IPX5 |
| Reset button | Yes |
| LED indicators | Status |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Directional |
| Antenna gain level (max) | 9 |
| Polarization | Dual polarization |
| Performance | |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 560 |
| Processor architecture | MIPS 74Kc |
| Flash memory | 8 |
| Internal memory | 64 |
| Certificates | |
| Certification | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark CE, FCC, RoHS |
| Weight & dimensions | |
| Width | 224 |
| Depth | 79 |
| Height | 60 |
| Packaging data | |
| Package width | 132 |
| Package depth | 270 |
| Package height | 106 |
| Package weight | 760 |
| Packaging content | |
| Quantity per pack | 1 |
| Cables included | AC |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -30 - 70 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
