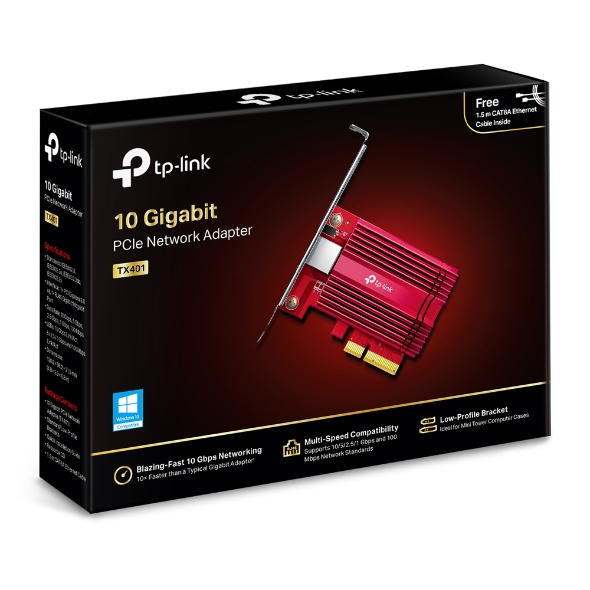

6935364072827 TP-Link TX401 10G 10 Gigabit PCI Express Network Adapter Low-Profile Full-Height Brackets 1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port (NIC)

(0 review)

Product Code: 6935364072827

TP-Link TX401 10 Gigabit PCI Express Network Adapter
10 Gbps Networking - Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.†
Versatile Compatibility - With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
CAT6A Ethernet Cable - To maximize TX401's performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.
Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs.‡

109.00 109.00 (Tax excluded)

  • Brand
  • Manufacturer
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link TX401, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s, Red

TP-Link TX401. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Red

Ports & interfaces
Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
PCI version3.0
Network
Maximum data transfer rate10000
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates100,1000,2500,5000,10000
Design
Component forPC
Product colourRed
InternalYes
LED indicatorsActivity, Link
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)0 - 40
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Sustainability
Sustainability complianceYes
Weight & dimensions
Width120.8
Depth98.2
Height21.5
Packaging data
Package width200
Package depth150
Package height44
Package weight300
Packaging content
Cables includedLAN (RJ-45)
Mounting brackets includedYes
Resource CDYes
Quick installation guideYes
Technical details
Compliance certificatesRoHS, Federal Communications Commission (FCC), CE
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand TP-Link
Manufacturer TP-Link
