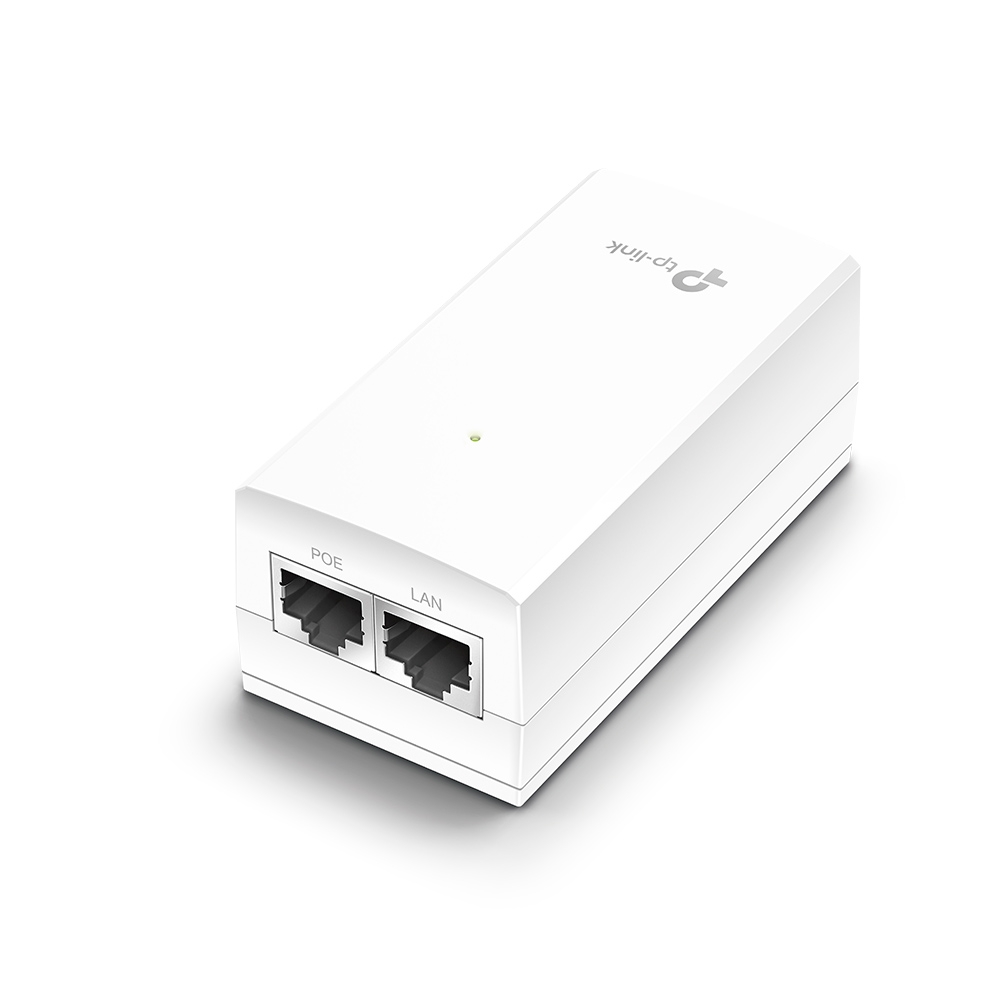

TP-Link 24V Passive PoE Adapter, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, Cat3, Cat4, Cat5, Cat5e, Cat6, White, 100 m
TP-Link 24V Passive PoE Adapter. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: White, Maximum operating distance: 100 m, LED indicators: Power. Power over Ethernet (PoE) voltage: 24 V, Output power: 12 W. Compliance certificates: RoHS, Certification: FCC, CE, RoHS. Width: 85.8 mm, Depth: 43.9 mm, Height: 35 mm
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Features | |
| Product colour | White |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 |
| LED indicators | Power |
| Auto-negotiation | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) voltage | 24 |
| Output power | 12 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC, CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 104 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 85.8 |
| Depth | 43.9 |
| Height | 35 |
| Dimensions (WxDxH) | 43.9 x 85.8 x 35 |
| Packaging content | |
| Number of products included | 1 |
| Wall mounting kit | Yes |
| Power cord included | Yes |
| Packaging data | |
| Package width | 60 |
| Package depth | 180 |
| Package height | 60 |
| Package weight | 290 |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
