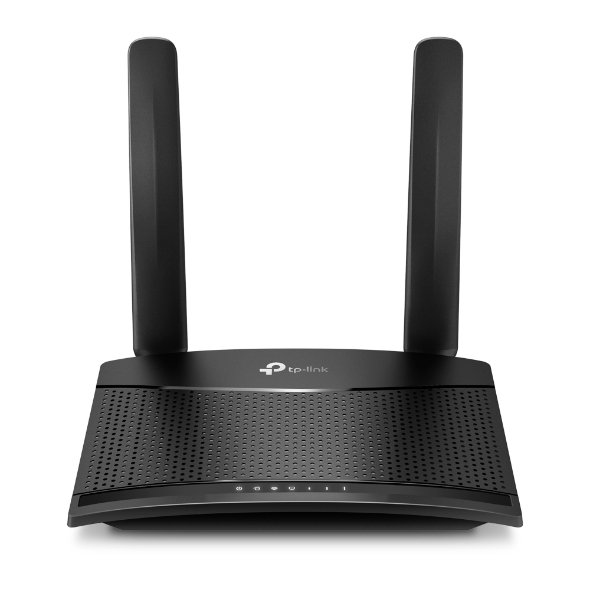

TP-Link TL-MR100, Wi-Fi 4 (802.11n), Single-band (2.4 GHz), Ethernet LAN, 3G, Black, Tabletop router
TP-Link TL-MR100. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless radio | Yes |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 |
| Receiver sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Mobile network | |
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 3G standards | HSPA, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 800,900,1800,1900,2100,2300,2500,2600 |
| 3G bands supported | 850,900,2100 |
| SIM card type | MicroSIM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Management features | |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Wireless statistics | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Tabletop router |
| Certificates | |
| Certification | CE, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | External |
| Antenna connector type | N-type |
| Antennas quantity | 2 |
| Features | |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | DC |
| Output voltage | 9 |
| Output current | 0.85 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| System requirements | |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 154 |
| Depth | 114 |
| Height | 36 |
| Weight | 150 |
| Packaging data | |
| Package width | 293 |
| Package depth | 161 |
| Package height | 66 |
| Package weight | 450 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
