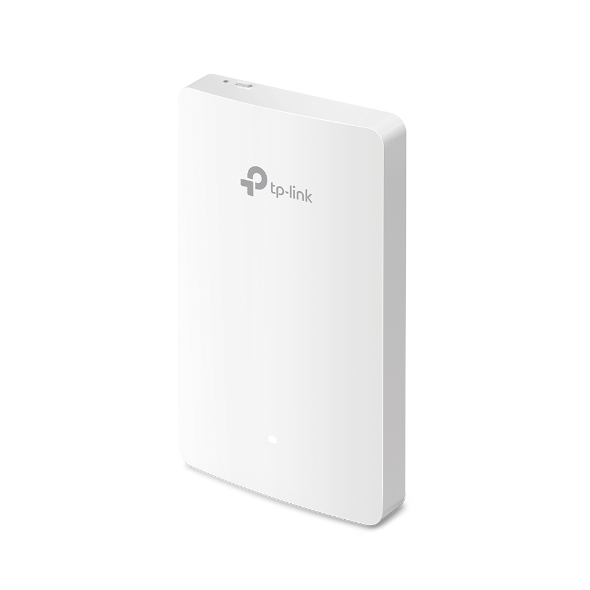

6935364088972 TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

6935364088972 TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

(0 review)

Product Code: 6935364088972

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
• Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
• Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for a wired device.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
• Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm EU US standard junction box, and 802.3af/at PoE support.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
HARDWARE FEATURES
Interface Uplink: 10/100/1000 Mbps Ethernet Port*1
Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE Out Included)
Dimensions 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas
2.4GHz: 2*4dBi
5GHz: 2*4dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Wireless Functions 16 SSIDs（Up to 8 SSIDs on each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Band Steering

$ 109.00 $ 109.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, 2.4 GHz, 5 GHz, 1167 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,..., 10,100,1000 Mbit/s

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Features
2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate1167
Maximum data transfer rate (2.4 GHz)300
Maximum data transfer rate (5 GHz)867
Ethernet LAN data rates10,100,1000
Frequency band2.4 - 5
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Cabling technology10/100/1000Base-T(X)
Automatic channel selectionYes
Automatic channel scanningYes
MIMOYes
MIMO typeMulti User MIMO
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Virtual LAN featuresPort-based VLAN, VLAN mapping
Rate limitingYes
Wireless isolationYes
Band steeringYes
Quality of Service (QoS) supportYes
BeamFormingYes
Transmitting power (CE)20 - 23
Transmitting power (FCC)21
Security
Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MAC address filteringYes
Service Set Identifier (SSID) featuresMultiple SSIDs
Number of SSID supported16
Remote Authentication Dial-In User Service (RADIUS)Yes
Access Control List (ACL)Yes
Protocols
Universal Plug and Play (UPnP)Yes
Management features
Web-based managementYes
SyslogYes
Ports & interfaces
Ethernet LAN (RJ-45) ports4
WAN connectionEthernet (RJ-45)
Power
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedActive PoE, Passive PoE
Power consumption (typical)24.4
Design
PlacementWall
Product colourWhite
Cable lock slotYes
Reset buttonYes
LED indicatorsLAN, Power, Status, WAN, WLAN
Antenna
Antenna typeInternal
Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)4
Performance
Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width143
Depth86
Height20
Packaging data
Package width117
Package depth184
Package height33
Package weight300
Package typeBox
Packaging content
Quantity per pack1
Mounting kitYes
Quick start guideYes
Operational conditions
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90
Sustainability
Sustainability complianceYes
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand TP-Link
Manufacturer TP-Link
