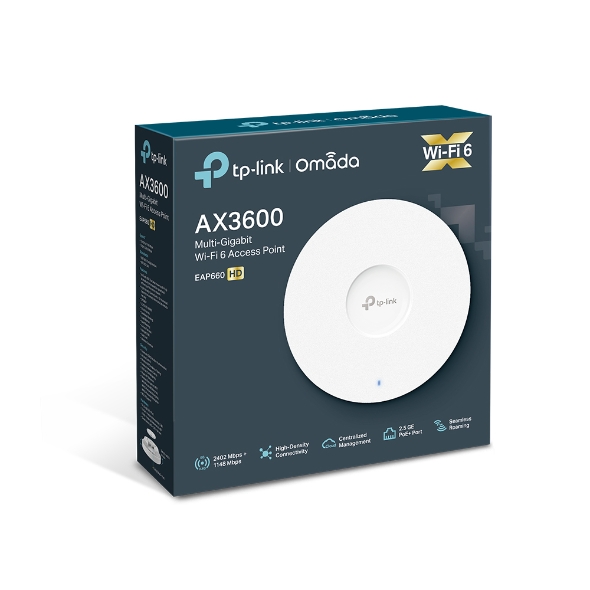

6935364089719 TP-Link EAP660 HD Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point, 2402Mbps @ 5GHz POE+, SNMP, MU-MIMO, QoS, Mountable

6935364089719 TP-Link EAP660 HD Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point, 2402Mbps @ 5GHz POE+, SNMP, MU-MIMO, QoS, Mountable

(0 review)

Product Code: 6935364089719

TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
• High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES
Interface 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12 V DC
Power Consumption • EU: 18.5 W
• US: 21.5 W
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
Package Contents • EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

$ 390.85 $ 390.85 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point, 2.4 GHz, 5 GHz, 2402 Mbit/s, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK, 25000 Mbit/s

TP-Link Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2402 Mbit/s. Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK. Ethernet LAN data rates: 25000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Features
2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate2402
Maximum data transfer rate (2.4 GHz)1148
Maximum data transfer rate (5 GHz)2402
Ethernet LAN data rates25000
Frequency band2.4 - 5
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selectionYes
Automatic channel scanningYes
MIMOYes
MIMO typeMulti User MIMO
Wi-Fi Multimedia (WMM)/(WME)Yes
Wi-Fi roamingYes
VLAN supportYes
Rate limitingYes
Wireless isolationYes
Airtime Fairness (ATF)Yes
Quality of Service (QoS) supportYes
Security
Security algorithmsWPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
MAC address filteringYes
Service Set Identifier (SSID) featuresMultiple SSIDs
Remote Authentication Dial-In User Service (RADIUS)Yes
Management features
Web-based managementYes
SyslogYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Power
Power over Ethernet (PoE)Yes
Output voltage12
Output current2
Design
PlacementCeiling
Product colourWhite
Antenna
Antenna typeInternal
Weight & dimensions
Width243
Depth243
Height64
Packaging content
Mounting kitYes
Operational conditions
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand TP-Link
Manufacturer TP-Link
