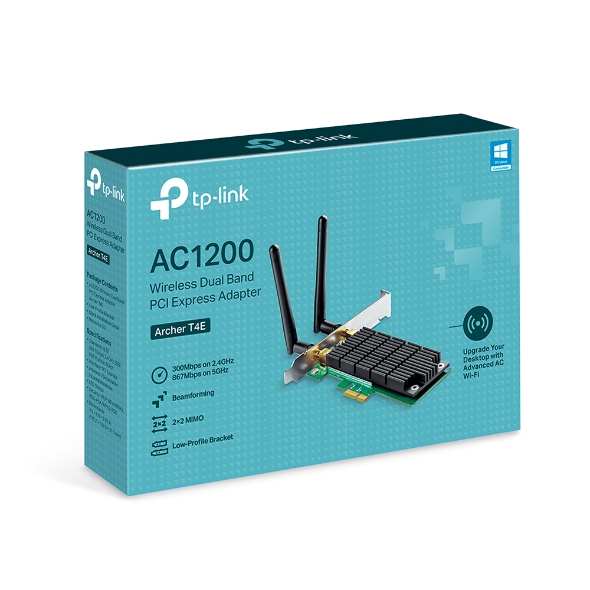

TP-Link Archer T4E, Internal, Wireless, PCI Express, WLAN, 867 Mbit/s, Black, Green
TP-Link Archer T4E. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Green
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| PCI Card form factor | Half-height (low-profile) |
| Network | |
| Maximum data transfer rate | 867 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 11,54,300,867 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Bandwidth (first) | 2.4 |
| Bandwidth (second) | 5 |
| Design | |
| Component for | PC |
| Product colour | Black, Green |
| Internal | Yes |
| Antenna | Yes |
| Antenna design | External |
| Transmitting power (CE) | 23 |
| Transmitting power (FCC) | 24 |
| Operating modes | Infrastructure mode |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 120.8 |
| Depth | 115.2 |
| Height | 21.5 |
| Packaging data | |
| Low-profile bracket | Yes |
| Quantity per pack | 1 |
| Package type | Box |
| Package width | 207 |
| Package depth | 148 |
| Package height | 42 |
| Package weight | 300 |
| Packaging content | |
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Quick installation guide | Yes |
| Technical details | |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Transmit power range | 59.5 - 92 |
| Conflict-Free | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
