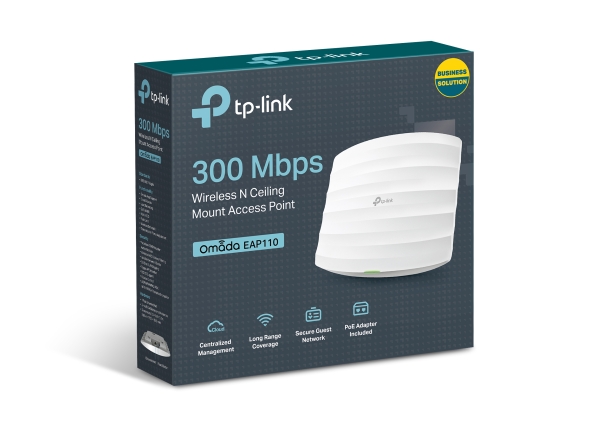

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,..., 10,100 Mbit/s
TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,.... Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Maximum data transfer rate | 300 |
| Maximum data transfer rate (2.4 GHz) | 300 |
| Ethernet LAN data rates | 10,100 |
| Frequency band | 2.4 - 2.4835 |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | VLAN mapping |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power (CE) | 19 |
| Transmitting power (FCC) | 21 |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| AC input voltage | 24 |
| Power consumption (typical) | 2.8 |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Weight & dimensions | |
| Width | 189.5 |
| Depth | 170.5 |
| Height | 29.7 |
| Packaging data | |
| Package width | 246 |
| Package depth | 268 |
| Package height | 69 |
| Package weight | 720 |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 |
| PoE adapter included | Yes |
| Cables included | AC |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
