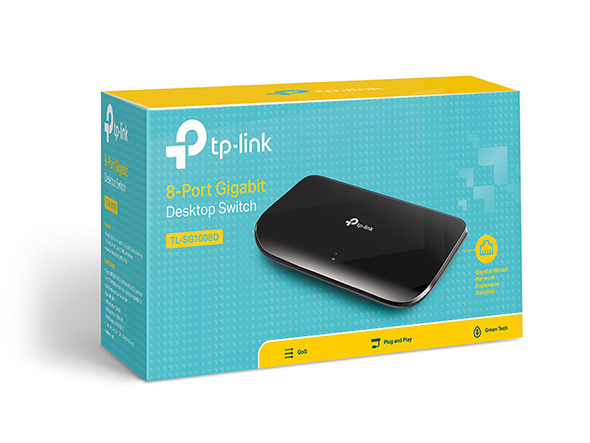

TP-Link 8-Port Gigabit Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Wall mountable
TP-Link 8-Port Gigabit Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack. Wall mountable
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,480,800,1000 |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 16 |
| MAC address table | 4000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 2 |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
| Maximum cable length | 100 |
| Fanless | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| DC input voltage | 9 |
| Input current | 0.6 |
| Power consumption (max) | 3.53 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 15.8 |
| Weight & dimensions | |
| Width | 180 |
| Depth | 90 |
| Height | 25.5 |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 110 |
| Package depth | 185 |
| Package height | 85 |
| Package weight | 300 |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
