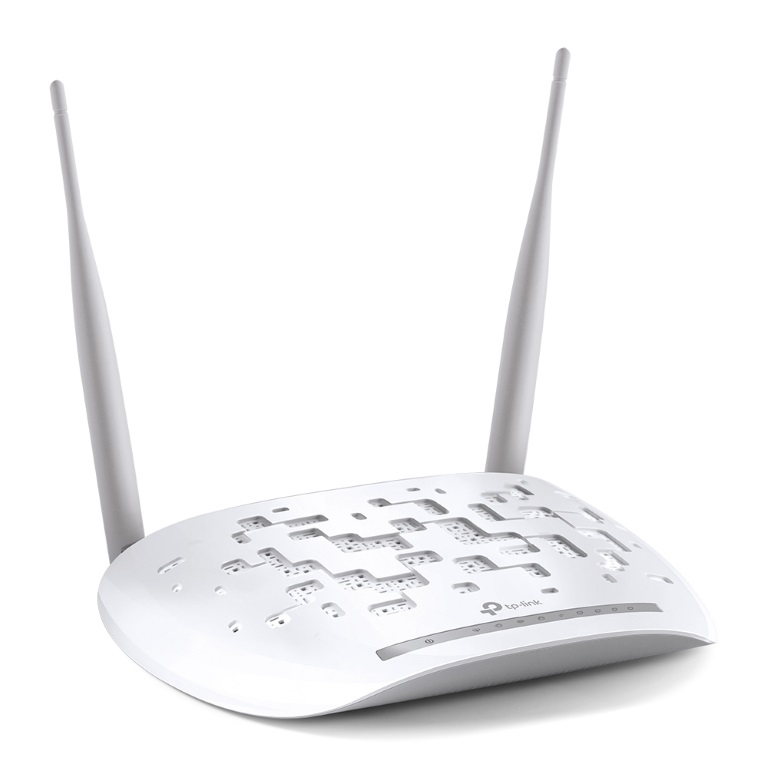

TP-Link 300Mbps Wireless N USB VDSL/ADSL Modem Router, Wi-Fi 4 (802.11n), Single-band (2.4 GHz), Ethernet LAN, VDSL2, White, Tabletop router
TP-Link 300Mbps Wireless N USB VDSL/ADSL Modem Router. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: 128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, WPA,.... Product type: Tabletop router, Product colour: White
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| USB sharing | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN tunnels quantity | 10 |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec Pass-through |
| DSL features | |
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RJ-11 ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | 128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| DMZ support | No |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | White |
| Wall mountable | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
| Product type | Tabletop router |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Antenna | |
| Antenna design | External |
| Antenna gain level (max) | 5 |
| Antennas quantity | 2 |
| Features | |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | DC |
| Output voltage | 12 |
| Output current | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | macOS |
| Weight & dimensions | |
| Width | 195 |
| Depth | 130 |
| Height | 36 |
| Packaging data | |
| Package width | 260 |
| Package depth | 232 |
| Package height | 70 |
| Package weight | 550 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| WLAN data transfer rates supported | 300 |
| Frequency range | 2.4 - 2.4835 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| xDSL connection | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
