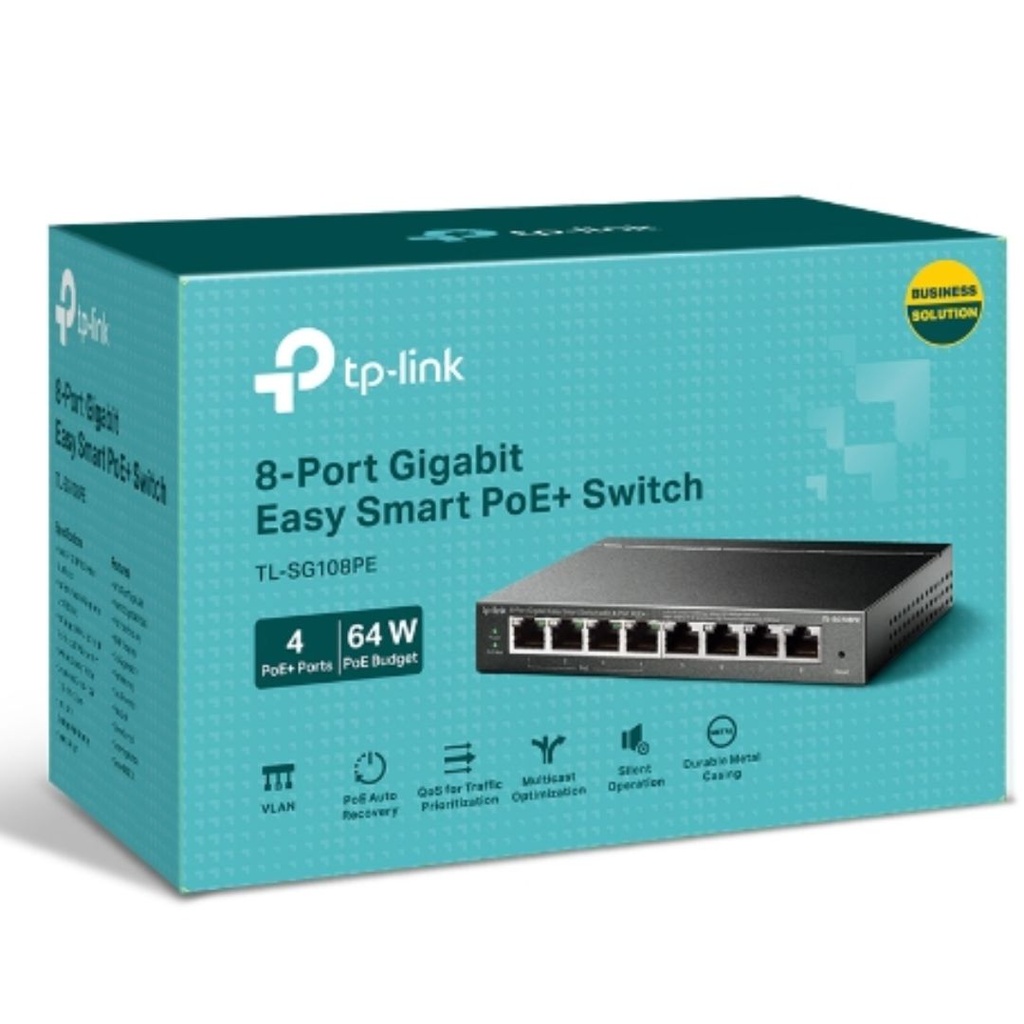

6935364094744 TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE, 55W IEEE 802.3af, Fanless, VLAN Features

6935364094744 TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE, 55W IEEE 802.3af, Fanless, VLAN Features

(0 review)

Product Code: 6935364094744

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch
8 10/100/1000Mbps RJ45 ports
With 4 PoE ports, data and power can be transferred on one single cable
Provides network monitoring, traffic prioritization and VLAN features
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
What This Product Does
The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch.
It is designed specically for small businesses that require simple network management and PoE function.
The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones.
Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS.
Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 48VDC / 1.25A)
Power Consumption Maximum (PoE on): 65.2W (220V/50Hz)
Maximum (PoE off): 5.2W (220V/50Hz)
PoE+ Ports(RJ45) Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb

$ 89.00 $ 89.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Network
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Port mirroringYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN
Number of VLANs32
Data transmission
Switching capacity16
Forwarding rate11.9
MAC address table4000
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory1.5
Security
IGMP snoopingYes
Loop protectionYes
Design
Product colourBlack
LED indicatorsActivity, Link, PoE, Power, Speed, Status
Power
Power sourceDC
Power supply includedYes
Input current1.25
Input voltage48
Power consumption (max)65.2
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet (PoE) power per port15.4
Total Power over Ethernet (PoE) budget64
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 95
Heat dissipation256.19
Weight & dimensions
Width158
Depth101
Height25
Packaging content
Cables includedAC
User guideYes
Packaging data
Package typeBox
Package width131
Package depth196
Package height121
Package weight890
Certificates
CertificationFCC, CE, RoHS
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand TP-Link
Manufacturer TP-Link
