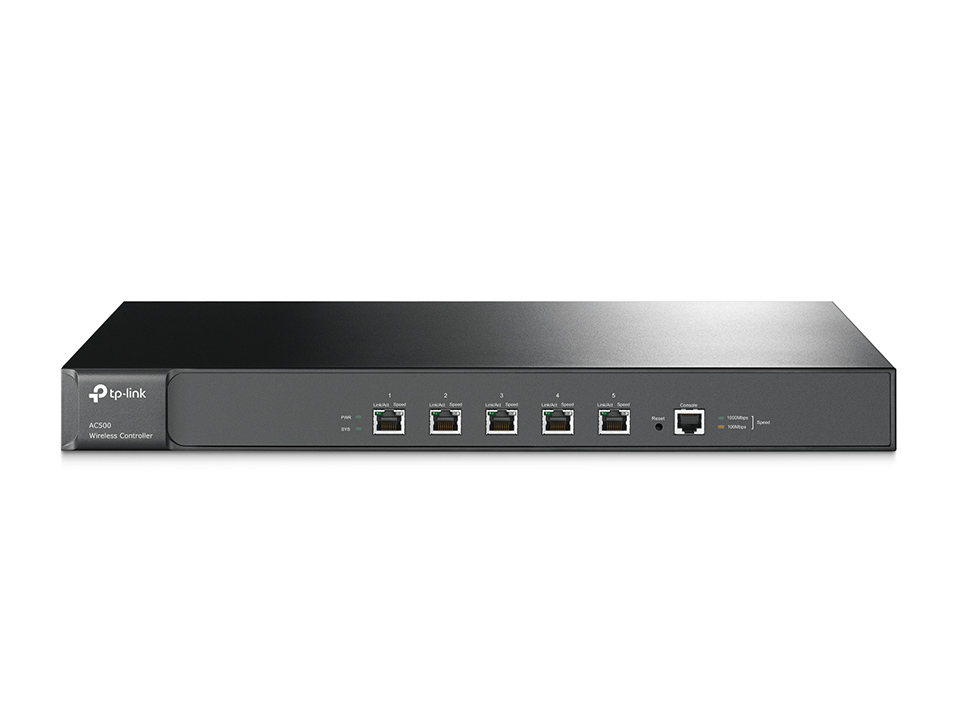

6935364099480 TP-Link AC500 Wireless Controller, 5* Gigabit, Up To 500 APs, 32 SSIDs, MAC Authentication, Dual-Link Back Up, Rackmount (LS)

Product Code: 6935364099480

TP-Link AC500 Wireless Controller, 5* Gigabit, Up To 500 APs, 32 SSIDs
Auto-detect and centralized management, up to 500 CAPs
License-free management reduces the OPEX of enterprise network
Easy deployment without changing the existing network topology
Unified configuration of wireless networks, support mapping of SSID and VLAN
Support MAC authentication, portal authentication
Dual-link back up for management safety
HARDWARE FEATURES
Installation Rack-mount
Processor 1GHz Dual-core MIPS64 network dedicated processors
Memory 256MB DDR3*2, 32MB Flash*1
Interface Gigabit Ethernet Port*5
Console Port*1
Power Supply 100～240V AC,50/60Hz
LED Port: Link/Act, 1000M/100M
Device: PWR, SYS
Dimensions ( W x D x H ) 17.3*8.7*1.7 in. (440 × 220 × 44 mm)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
FEATURES
Management Scale Up to 500 APs
Wireless Fuction L3 Management
Multi-SSID
Load Balance
Band Steering
DHCP Server
WMM
Communication protocol
Wireless Security SSID to VLAN Mapping
AP Isolation
SSID Isolation
Encryption
AP Management AP Automatic Discovery
AP Unified Configuration
AP Reboot Schedule
AP Batch Firmware Upgrade
Grouped AP management
AP LED ON/OFF
Web-based Management
Authentication Captive Portal Authenticaton
MAC Authentication
System status AP Status
Client Status
Authenticated User Status
System Management Configuration Backup/Import
Ping/Tracert Tool
System Log
