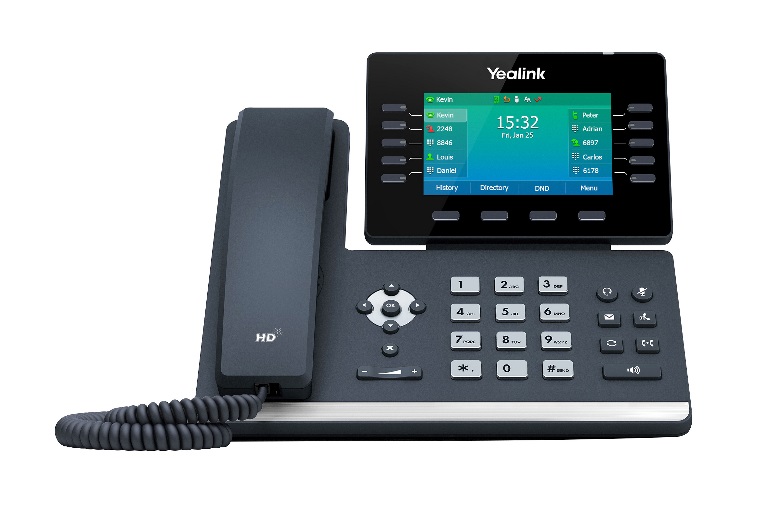

Yealink SIP-T54W, IP Phone, Black, Wired handset, Desk/Wall, In-band, Out-of band, SIP info, 10 lines
Yealink SIP-T54W. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 10 lines, Phonebook capacity: 1000 entries. Volume control: Buttons. Display: LCD, Display diagonal: 10.9 cm (4.3"), Display resolution: 480 x 272 pixels
| Design | |
|---|---|
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Black |
| Device lock | Yes |
| Wall mountable | Yes |
| Mounting | Desk/Wall |
| Performance | |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Phone features | |
| Lines quantity | 10 |
| Answering machine | Yes |
| Call waiting | Yes |
| Speed dialling | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Conference call | Yes |
| Redialing | Yes |
| Do not disturb function | Yes |
| Caller ID | Yes |
| Phonebook capacity | 1000 |
| Number of VoIP accounts | 16 |
| Call park | Yes |
| Call pick up | Yes |
| Anonymous call | Yes |
| Anonymous call rejection | Yes |
| Full duplex | Yes |
| Direct call | Yes |
| Short Message Service (SMS) | Yes |
| Phonebook sharing | Yes |
| Call return | Yes |
| Call transfer | Yes |
| Call history | Yes |
| Emergency call | Yes |
| Management features | |
| Integrated voicemail | Yes |
| Volume control | Buttons |
| Number of programmable keys | 10 |
| Display | |
| Display | LCD |
| Display diagonal | 10.9 |
| Display resolution | 480 x 272 |
| Touchscreen | No |
| Backlight display | Yes |
| Camera | |
| Front camera | No |
| Audio | |
| Speakerphone | Yes |
| Microphone mute | Yes |
| Voice codecs | G.722, G.723.1, G.726, G.729A, G.729B, OPUS, iLBC |
| Voice activity detection | Yes |
| Adaptive jitter buffers | Yes |
| Automatic gain control | Yes |
| Comfort noise generation (CNG) | Yes |
| Packet loss concealment (PLC) | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Maximum data transfer rate | 433 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Supported network protocols | FTP/TFTP/HTTP/HTTPS |
| Security algorithms | AES, HTTPS, SIPS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 2 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC adapter input voltage | 100 - 240 |
| AC adapter output voltage | 5 |
| AC adapter output current | 2 |
| Power consumption (typical) | 4.3 |
| Power consumption (Power over Ethernet (PoE)) | 5.5 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 95 |
| Weight & dimensions | |
| Width | 233 |
| Depth | 222.6 |
| Height | 186.1 |
| Packaging content | |
| Ethernet cable | Yes |
| Handset | Yes |
| Quick start guide | Yes |
| Number of handles included | 1 |
| Cables included | LAN (RJ-45) |
| Stand included | Yes |
Specifications
| Brand | Yealink |
