Yealink MVC S90-C5-004, Group video conferencing system, 4K Ultra HD, 30 fps, 120°, 12x, 1.7x
Yealink MVC S90-C5-004. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 1080p, 2160p, Maximum frame rate: 30 fps. Field of view (FOV) angle: 120°, Optical zoom: 12x, Digital zoom: 1.7x. Ethernet LAN, Wi-Fi. Bluetooth. Display: IPS, Display diagonal: 29.5 cm (11.6"), Display resolution: 1920 x 1080 pixels. Product colour: Black, Grey
| Performance | |
|---|---|
| Number of cameras | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Product colour | Black, Grey |
| Auto framing | Yes |
| Auto-tracking | Yes |
| Tracking modes | Presenter mode |
| Meeting features | Content sharing |
| Product type | Group video conferencing system |
| PTZ control | Yes |
| Technical details | |
| Warranty period | 2 |
| Video | |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3860 x 2160 |
| Maximum frame rate | 30 |
| Aspect ratio | 16:9 |
| Audio | |
| Built-in speaker(s) | Yes |
| Memory | |
| Internal memory | 8196 |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 128 |
| Interface module | |
| Interface module HDMI output ports quantity | 3 |
| Interface module USB 2.0 ports quantity | 4 |
| Interface module audio RCA input ports quantity | 1 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module DC input port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Camera | |
| Megapixel (approx.) | 8 |
| Camera type | Dual camera |
| Second camera resolution | 8 |
| Zoom capability | Yes |
| Optical zoom | 12 |
| Digital zoom | 1.7 |
| Field of view (FOV) angle | 120 |
| Horizontal field of view | 110 |
| Vertical field of view | 78 |
| Diagonal field of view | 120 |
| Display | |
| Display | IPS |
| Display diagonal | 29.5 |
| Display resolution | 1920 x 1080 |
| Touchscreen | Yes |
| Features | |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Logistics data | |
| Country of origin | China |
| Computer system | |
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Power | |
| Power source type | AC |
| Weight & dimensions | |
| Weight | 12.1 |
| Packaging data | |
| Package width | 935 |
| Package depth | 413 |
| Package height | 312 |
| Package weight | 13.8 |
| Packaging content | |
| External interface module included | Yes |
| Camera control unit included | Yes |
| Cables included | HDMI, LAN (RJ-45), USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Camera included | Yes |
| Quick start guide | Yes |

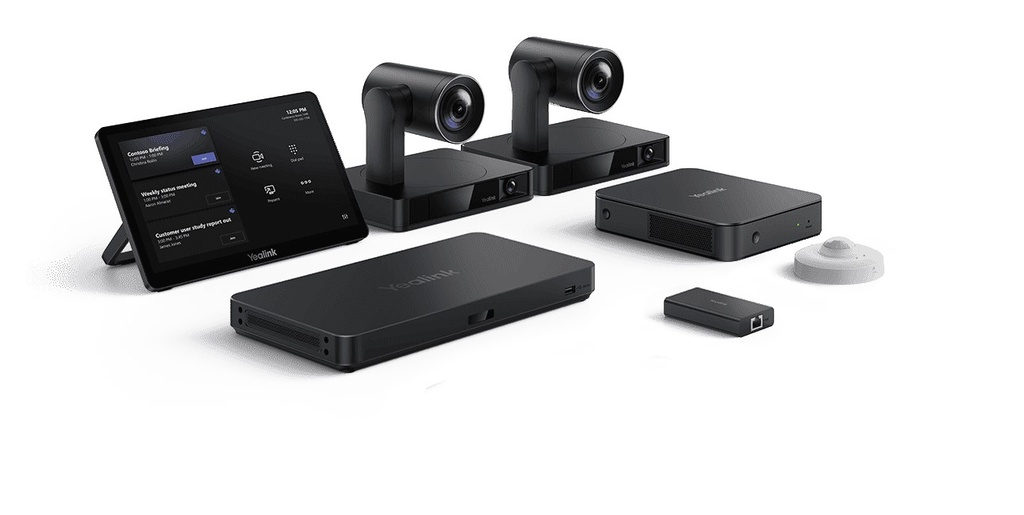

| Packaging content | MCore Pro, Gen-3 Mini-PC; MTouch Plus, Gen-3 touch panel; AVHub, audio and video processor; 2 x UVC86 USB PTZ camera; 2 x WPP30 wireless presentation pod; RoomSensor, meeting room sensor; |
