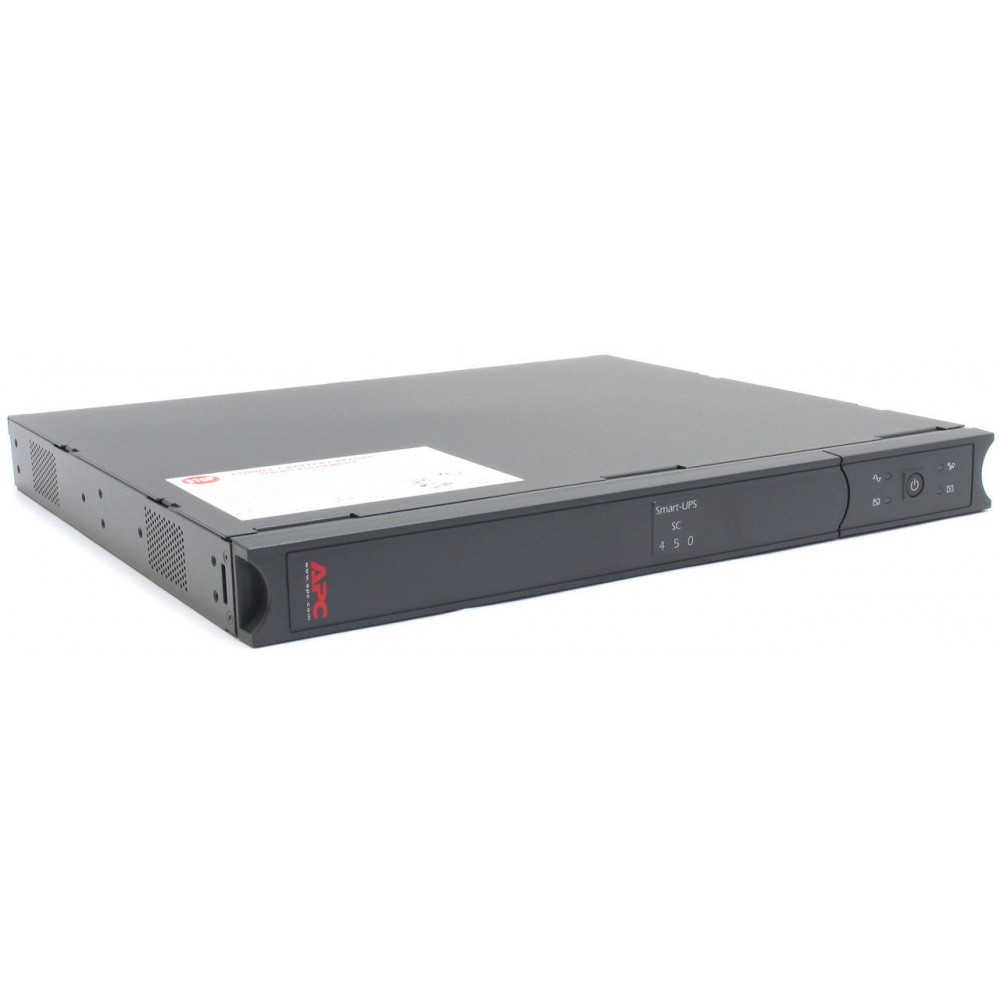

731304222712 APC Smart-UPS 450VA/280W Line Interactive UPS, 1U RM, 230V/10A Input, 4x IEC C13 Outlets, Lead Acid Battery

731304222712 APC Smart-UPS 450VA/280W Line Interactive UPS, 1U RM, 230V/10A Input, 4x IEC C13 Outlets, Lead Acid Battery

(0 review)

Product Code: 731304222712

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 280 W
Rated power in VA 450 VA
Input Connection Type IEC 320 C14
Output connection type- 4 IEC 320 C13, 2 IEC Jumpers
Number of rack unit 1U
Battery type Lead-acid battery
Provided equipment- User manual, Rack mounting brackets, Smart UPS signalling RS-232 cable, CD with software
Input voltage limits- 151...302 V adjustable, 195...265 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Acoustic level 38 dBA
Heat dissipation 38 Btu/h
Operating altitude 0...10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %
Mounting mode- Rack mounted
Replacement Battery - RBC18
Compatible PDU- AP6015A, AP7820B, AP7850B, AP7920B, AP7950B, AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW, AP8704S-WW, AP8704S-WWX340, AP8704S-WWX590, AP8706R-WW, AP8706S-WW, AP8706S-WWX340, AP8706S-WWX591, AP9568, AP9870, AP9878
Compatible Interface connections- 940-0020, 940-0024, AP940-0625A, AP940-1525A, AP9804, AP9815, AP98275

$ 529.00 $ 529.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower, Line-Interactive, 0.45 kVA, 280 W, Sine, 151 V, 302 V

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower. UPS topology: Line-Interactive, Output power capacity: 0.45 kVA, Output power: 280 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 108 VAh, Typical backup time at full load: 5.9 min. Form factor: Rackmount/Tower, Product colour: Grey, Rack capacity: 1U. Compliance certificates: RoHS, Certification: C-tick, CE, GOST, VDE, PEP, EOLI

Features
UPS topologyLine-Interactive
Output power capacity0.45
Output power280
WaveformSine
Input operation voltage (min)151
Input operation voltage (max)302
Input frequency50/60
Automatic Voltage Regulation (AVR)Yes
Surge energy rating320
Hold time (min)4
Hold time (max)8
Noise level38
Surge protectionYes
Surge protection featuresDigital Subscriber Line (DSL), Fax, Modem, Network
Audible alarm(s)Yes
Audible alarm modesLow battery alarm, Overload alarm
Auto-restartYes
Ports & interfaces
AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity4
Number of output IEC jumpers2
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1
SmartSlotNo
SmartConnect portNo
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity108
Typical backup time at full load5.9
Typical backup time at half load19.4
Battery life (max)5
Battery recharge time5
Hot-swap batteryYes
Automatic battery testYes
Design
Form factorRackmount/Tower
Rack capacity1U
Product colourGrey
LED indicatorsBattery replacement
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-15 - 45
Operating relative humidity (H-H)0 - 95
Storage relative humidity (H-H)0 - 95
Operating altitude0 - 3000
Non-operating altitude0 - 15000
Certificates
Compliance certificatesRoHS
CertificationC-tick, CE, GOST, VDE, PEP, EOLI
Packaging content
Rack mount kitYes
Cables includedRS-232
Management card includedNo
ManualYes
Weight & dimensions
Width432
Depth383
Height44
Weight10.2
Packaging data
Software CDYes
Package width476
Package depth589
Package height164
Package weight11.7
Logistics data
Products per pallet24
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)484.92
Other features
Nominal output voltage230

Specifications

Brand APC
