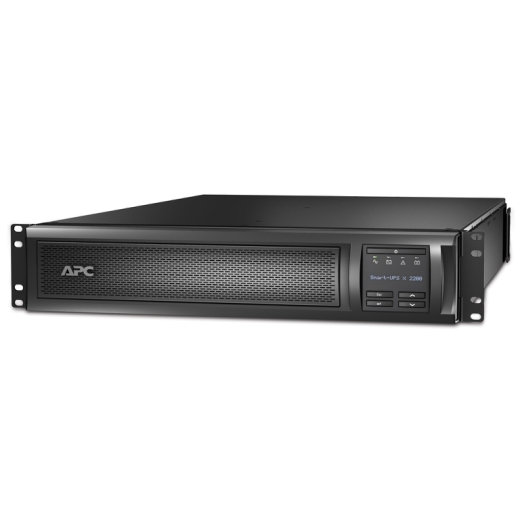

APC Smart-UPS X SMX2200RMHV2U - 2200VA, 8x C13 + 1x C19 outlet, USB, expandable runtime, Line-Interactive, 2.2 kVA, 1980 W, Sine, 50/60 Hz, 208 V
APC Smart-UPS X SMX2200RMHV2U - 2200VA, 8x C13 + 1x C19 outlet, USB, expandable runtime. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 VAh, Typical backup time at full load: 9.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778,...
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 |
| Output power | 1980 |
| Waveform | Sine |
| Input frequency | 50/60 |
| Output operation voltage (min) | 208 |
| Output operation voltage (max) | 240 |
| Output frequency regulation | 50/60 |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 645 |
| Response time | 4 |
| Hold time (min) | 2 |
| Hold time (max) | 10 |
| Efficiency | 98.1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 9 |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 702 |
| Typical backup time at full load | 9.8 |
| Typical backup time at half load | 25.3 |
| Battery life (max) | 5 |
| Battery recharge time | 3 |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cable length | 1.83 |
| Product colour | Black |
| LED indicators | Battery replacement |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
| Management card included | No |
| Manual | Yes |
| Sustainability | |
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Width | 432 |
| Depth | 667 |
| Height | 85 |
| Weight | 37.3 |
| Packaging data | |
| Software CD | Yes |
| Package width | 596 |
| Package depth | 869 |
| Package height | 243 |
| Package weight | 45.4 |
| Logistics data | |
| Products per pallet | 8 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 2715.94 |
| Other features | |
| Nominal output voltage | 230 |
| Nominal input voltage | 230 |
Specifications
| Brand | APC |
