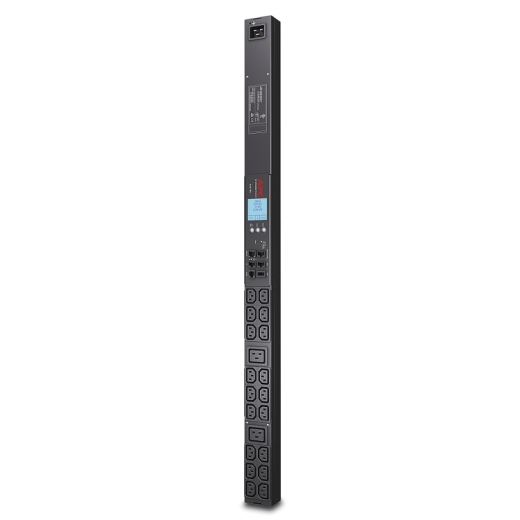

731304277026 APC Netshelter Metered Rack PDU, 0U, 230V/16A Input, 2x IEC C19 18x IEC C13 Outlets

731304277026 APC Netshelter Metered Rack PDU, 0U, 230V/16A Input, 2x IEC C19 18x IEC C13 Outlets

(0 review)

Product Code: 731304277026

APC NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDUIt integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Colour Black
PDU type Metered
Provided equipment- Installation guide, Rack mounting brackets, Serial configuration cable, Safety guide
Input Voltage 200 V 208 V 230 V
Output Voltage 100 V 200 V 208 V 230 V
Rack units 0U
Mounting position Vertical
[In] rated current 16 A
Permissible voltage 100…240 V
Input current limits 20 A
Load capacity 3300 VA
Network frequency 50/60 Hz
Total number of outlets 18 IEC 60320 C13 2 IEC 60320 C19
Product certifications- METI Denan, VDE
Standards- CSA C22.2 No 60950, IEC 60950, UL 60950-1
Ambient air temperature for operation -5…60 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
Compatible PDU- AP8000BLU, AP8000RED, AP8702R-WW, AP8702S-WW, AP8702S-WWX340
Compatible Sensors- AP9335T, AP9335TH
Compatible Mounting- AR7711

$ 1,350.00 $ 1,350.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC AP8858, Metered, 0U, Vertical, Black, 20 AC outlet(s), C13 coupler, C19 coupler

APC AP8858. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 20 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC-320 C20. Monitoring: Current, Power, Voltage. Nominal input voltage: 230 V, AC input frequency: 50 - 60 Hz, Load capacity: 3680 VA. Certification: CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH

Design
PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack
Ports & interfaces
AC outlets quantity20
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC-320 C20
Output connections18x IEC 320 C13 2x IEC 320 C19
Management features
MonitoringCurrent, Power, Voltage
Power
Nominal input voltage230
AC input frequency50 - 60
Load capacity3680
Maximum input current per phase16
Maximum total current draw per phase16
Maximum power3680
Certificates
CertificationCSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Operational conditions
Operating temperature (T-T)5 - 45
Storage temperature (T-T)-25 - 65
Operating relative humidity (H-H)5 - 95
Storage relative humidity (H-H)5 - 95
Weight & dimensions
Width56
Depth44
Height902
Weight2.93
Packaging data
Package weight4.2
Package width162
Package depth107
Package height1124
Logistics data
Total carbon footprint (kg of CO2e)12787.89

Specifications

Brand APC
