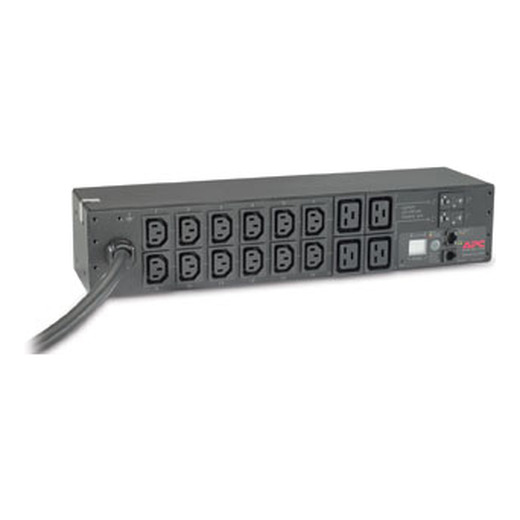

731304331520 APC NetShelter Metered Rack PDU, 2U, 1PH, 7.4kW 230V 32A, x12 C13 and x4 C19 outlets, IEC 309 cord

731304331520 APC NetShelter Metered Rack PDU, 2U, 1PH, 7.4kW 230V 32A, x12 C13 and x4 C19 outlets, IEC 309 cord

(0 review)

Product Code: 731304331520

APC NetShelter Metered Rack PDU, 2U, 1PH, 7.4kW 230V 32A, x12 C13 and x4 C19 outlets, IEC 309 cord
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface.
Product or component type PDU
PDU type Metered
Cord length 3.7 m
Number of cables 1
Provided equipment- Cord retention bracket(s), Installation guide, Rack mounting brackets, User manual
Input Voltage 200 V, 208 V, 230 V
Output Voltage 230 V
Product certifications C-Tick, CE, GOST, IRAM, MIC, VDE, VCCI
Standards FCC part 15 class A ICES-003
Ambient air temperature for operation -5…45 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.0000000000…15240.0000000000 m

$ 1,700.00 $ 1,700.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC AP7822B, Metered, 2U, Single-phase, Horizontal/Vertical, Black, 16 AC outlet(s)

APC AP7822B. PDU types: Metered, Rack capacity: 2U, Type: Single-phase. AC outlets quantity: 16 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3.66 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 208-230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz

Design
PDU typesMetered
TypeSingle-phase
Rack capacity2U
MountingHorizontal/Vertical
Product colourBlack
On/off switchYes
Ports & interfaces
AC outlets quantity16
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 32A 2P+E
Output connections12 x C13 4 x C19
Features
LED indicatorsYes
Cable length3.66
Management features
MonitoringCurrent, Power, Voltage
Power
Nominal input voltage208-230
AC input frequency50 - 60
Maximum current32
Load capacity7680
Maximum input current per phase32
Maximum total current draw per phase32
Power protection featuresOverload
Maximum power7680
Certificates
Compliance certificatesRoHS
CertificationC-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Operational conditions
Operating temperature (T-T)-5 - 45
Storage temperature (T-T)-25 - 65
Operating relative humidity (H-H)5 - 95
Storage relative humidity (H-H)5 - 95
Weight & dimensions
Width444
Depth112
Height88
Weight3.36
Packaging data
Package weight5.41
Package width508
Package depth368
Package height140
Logistics data
Total carbon footprint (kg of CO2e)8952.07

Specifications

Brand APC
