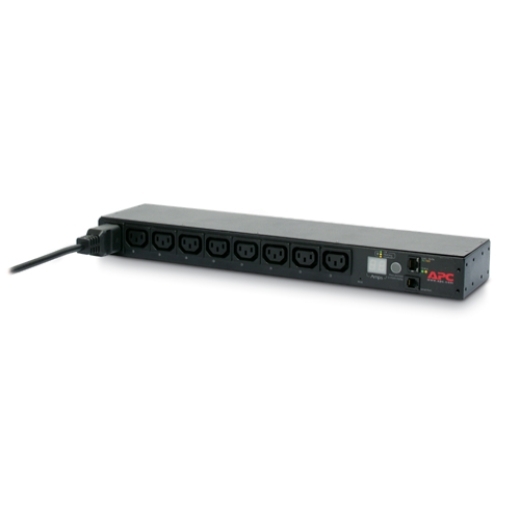

731304331629 APC Netshelter Switched Rack PDU, 1U, 230V/10A C20 Cord Input, 8x IEC C13 Outlets

731304331629 APC Netshelter Switched Rack PDU, 1U, 230V/10A C20 Cord Input, 8x IEC C13 Outlets

(0 review)

Product Code: 731304331629

APC NetShelter Switched Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, 8 C13 outlets, C20 cord
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Colour Black
PDU type Switched
Cord length 2.50 m
Number of cables 1
Provided equipment- Installation guide Rack mounting brackets User manual
Input Voltage 200 V 208 V 230 V
Output Voltage 208 V 230 V
Rack units 1U
Mounting position Horizontal
[In] rated current 16 A
Permissible voltage 200…240 V
Input current limits 20 A
Load capacity 3680 VA
Network frequency 50/60 Hz
Total number of outlets 8 IEC 60320 C13
Product certifications- cUL listed, CE, CSA, GOST, IRAM, MIC, UL listed, VDE, VCCI
Standards- EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, UL 60950
Ambient air temperature for operation 0…45 °C
Relative humidity 0…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted

$ 1,950.00 $ 1,950.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC AP7921B, Metered, Switched, 0U/1U, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler

APC AP7921B. PDU types: Metered, Switched, Rack capacity: 0U/1U, Mounting: Horizontal/Vertical. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 200-230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz

Design
PDU typesMetered, Switched
Rack capacity0U/1U
MountingHorizontal/Vertical
Product colourBlack
Ports & interfaces
AC outlets quantity8
Power plugC20 coupler
AC outlet typesC13 coupler
Input connection typeIEC-320 C20
Features
Cable length2.5
Management features
MonitoringCurrent, Power, Voltage
Outlet controlLock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage200-230
AC input frequency50 - 60
Maximum current16
Nominal output voltage208-230
Load capacity3680
Maximum input current per phase16
Maximum total current draw per phase16
Maximum power3680
Certificates
Compliance certificatesRoHS
CertificationcUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Operational conditions
Operating temperature (T-T)0 - 45
Storage temperature (T-T)-25 - 65
Operating relative humidity (H-H)0 - 95
Storage relative humidity (H-H)0 - 95
Operating altitude0 - 3000
Non-operating altitude1 - 15000
Weight & dimensions
Width445
Depth108
Height44
Weight2.27
Packaging content
Packaging contentInstallation Guide, Rack Mounting Brackets, User Manual
Packaging data
Package weight3.45
Package width470
Package depth343
Package height70
Logistics data
Total carbon footprint (kg of CO2e)915.89

Specifications

Brand APC
