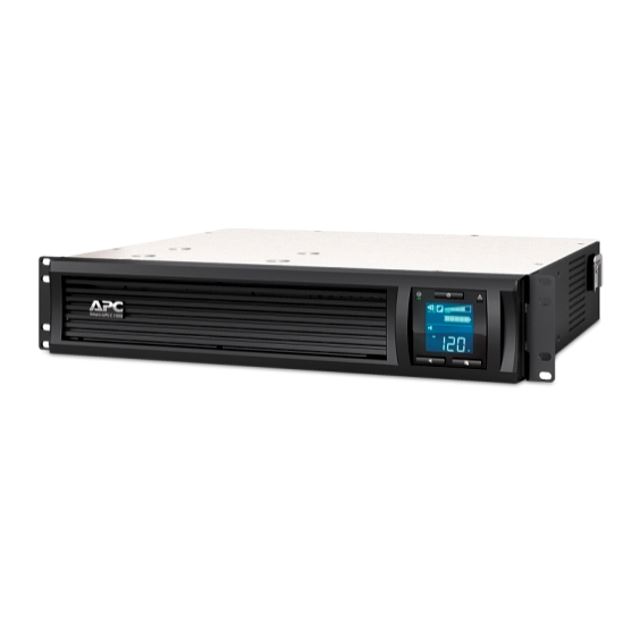

APC Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD, Line-Interactive, 1 kVA, 600 W, Sine, 170 V, 300 V
APC Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 600 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 6 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1 |
| Output power | 600 |
| Waveform | Sine |
| Input operation voltage (min) | 170 |
| Input operation voltage (max) | 300 |
| Input frequency | 50/60 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 680 |
| Output voltage Total Harmonic Distortion (THD) | 5 |
| Noise level | 41 |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | No |
| SmartConnect port | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery life (max) | 6 |
| Battery recharge time | 3 |
| Replacement battery cartridge | APCRBC124 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.44 |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | RJ-45, RS-232 |
| Management card included | No |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, Green Premium |
| Weight & dimensions | |
| Width | 432 |
| Depth | 406 |
| Height | 86 |
| Weight | 20.5 |
| Packaging data | |
| Resource CD | Yes |
| Software CD | Yes |
| Package width | 535 |
| Package depth | 570 |
| Package height | 235 |
| Package weight | 20.7 |
| Logistics data | |
| Products per pallet | 16 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 945.86 |
Specifications
| Brand | APC |
