Specifications

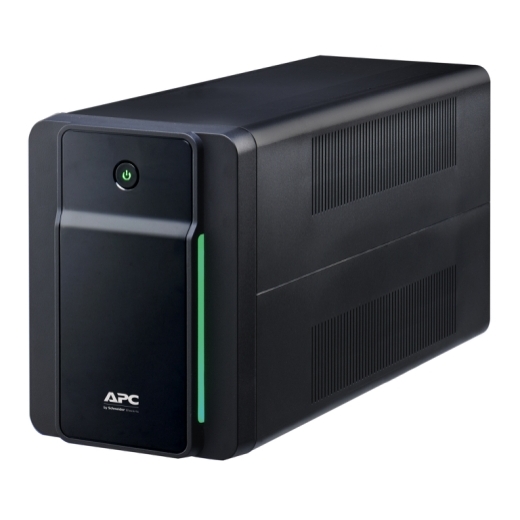

APC BX1600MI-AZ, Line-Interactive, 1.6 kVA, 900 W, Sine, 140 V, 300 V
APC BX1600MI-AZ. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 900 W. AC outlet types: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery capacity: 168 Ah, Battery life (max): 5 year(s), Battery recharge time: 8 h. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CB , CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1.6 |
| Output power | 900 |
| Waveform | Sine |
| Input operation voltage (min) | 140 |
| Input operation voltage (max) | 300 |
| Input frequency | 50/60 |
| Output operation voltage (min) | 230 |
| Output frequency | 50/60 |
| Surge energy rating | 273 |
| Response time | 6 |
| Input power factor | 0.56 |
| Noise level | 40 |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery |
| Ports & interfaces | |
| AC outlet types | C14 coupler |
| AC outlets quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery | |
| Battery capacity | 168 |
| Battery life (max) | 5 |
| Battery recharge time | 8 |
| Design | |
| Form factor | Compact |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 40 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 3000 |
| Certificates | |
| Certification | CB , CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 140 |
| Depth | 390 |
| Height | 190 |
| Weight | 10.3 |
| Packaging data | |
| Package width | 235 |
| Package depth | 495 |
| Package height | 297 |
| Package weight | 11.3 |
