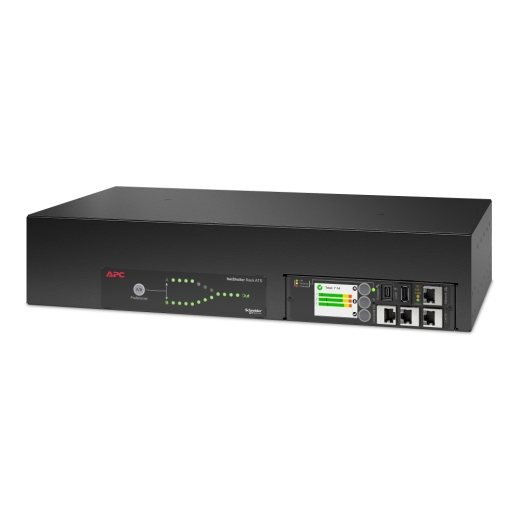

731304432456 APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz

731304432456 APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz

(0 review)

Product Code: 731304432456

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Main Input Voltage 230 V AC 1 phase
Main Output Voltage 230 V AC 1 phase
Input Connection Type IEC 60320 IEC 60309 32 A 2P + E, IEC 60320
Number of rack unit 2U
Cable length 2.44 m
Number of cables 2
Provided equipment Mounting hardware, Rack mounting brackets
Network frequency 50/60 Hz
Permissible voltage 207…253 V
Load capacity 7400 VA
Ambient air temperature for operation -5…45 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Mounting mode- Rack mounted
Compatible Mounting- AP7768, AP7769
Sensors- AP9335T, AP9335TH

$ 2,375.00 $ 2,375.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz, Rackmount, 2U, 18 AC outlet(s), Black

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz. Input operation voltage (min): 207 V, Input operation voltage (max): 253 V, AC input frequency: 50 - 60 Hz. Form factor: Rackmount, Rack capacity: 2U, Product colour: Black. AC outlets quantity: 18 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Width: 432 mm, Depth: 236 mm, Height: 88 mm

Power
Input operation voltage (min)207
Input operation voltage (max)253
AC input frequency50 - 60
Input current32
Output current32
Design
Form factorRackmount
Rack capacity2U
Product colourBlack
CertificationEN 55022 class A, FCC part 15 class A
Ports & interfaces
AC outlets quantity18
AC outlet typesC13 coupler, C19 coupler
Operational conditions
Operating temperature (T-T)-5 - 45
Storage temperature (T-T)-25 - 65
Operating relative humidity (H-H)5 - 95
Technical details
Total carbon footprint (kg of CO2e)794.41
Weight & dimensions
Width432
Depth236
Height88
Weight6.94

Specifications

Brand APC
