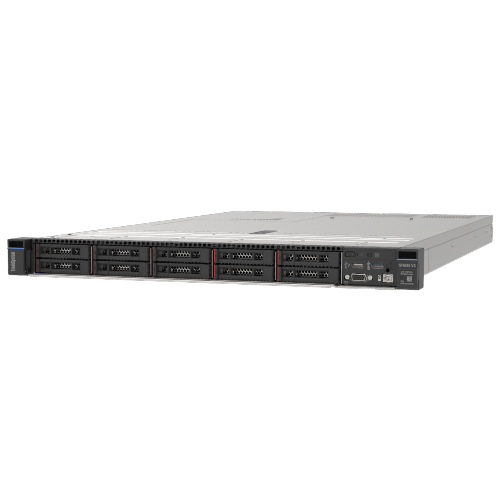

Lenovo ThinkSystem SR635 V3, 3 GHz, 9124, 16 GB, DDR5-SDRAM, 750 W, Rack (1U)
Lenovo ThinkSystem SR635 V3. Processor family: AMD EPYC, Processor frequency: 3 GHz, Processor model: 9124. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 16 GB. Power supply: 750 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9124 |
| Processor frequency | 3 |
| Processor boost frequency | 3.7 |
| Processor cores | 16 |
| Processor cache | 64 |
| Number of processors installed | 1 |
| Memory | |
| Internal memory | 16 |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 12x DIMM |
| ECC | Yes |
| Memory clock speed | 4800 |
| Memory layout (slots x size) | 1 x 16 |
| Maximum internal memory | 1.5 |
| Storage | |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported RAID controllers | 5350-8i |
| Hot-swap | Yes |
| Optical drive type | No |
| Internal drive bays | 8 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 2 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Metallic |
| Rack mounting | Yes |
| Performance | |
| Performance management | XClarity Standard |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Microsoft Windows 10 & 11, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 |
| Certificates | |
| Certification | ANSI/UL 62368-1 IEC 62368-1 (CB Certificate and CB Test Report) FCC - Verified to comply with Part 15 of the FCC Rules, Class A Canada ICES-003, issue 7, Class A CSA C22.2 No. 62368-1 CISPR 32, Class A, CISPR 35 Japan VCCI, Class A Taiwan BSMI CNS15936, Class A; CNS15598-1; Section 5 of CNS15663 CE, UKCA Mark (EN55032 Class A, EN62368-1, EN55024, EN55035, EN61000-3-2, EN61000-3-3, (EU) 2019/424, and EN IEC 63000 (RoHS)) Korea KN32, Class A, KN35 Russia, Belorussia and Kazakhstan, TP EAC 037/2016 (for RoHS) Russia, Belorussia and Kazakhstan, EAC: TP TC 004/2011 (for Safety); TP TC 020/2011 (for EMC) Australia/New Zealand AS/NZS CISPR 32, Class A; AS/NZS 62368.1 UL Green Guard, UL2819 Energy Star 3.0 EPEAT (NSF/ ANSI 426) Bronze China CCC certificate, GB17625.1; GB4943.1; GB/T9254 China CECP certificate, CQC3135 China CELP certificate, HJ 2507-2011 Japanese Energy-Saving Act Mexico NOM-019 TUV-GS (EN62368-1, and EK1-ITB2000) India BIS 13252 (Part 1) Germany GS Ukraine UkrCEPRO Morocco CMIM Certification (CM) EU2019/424 Energy Related Product (ErP Lot9) |
| Weight & dimensions | |
| Width | 440 |
| Depth | 773 |
| Height | 43 |
| Weight | 20.2 |
Specifications
| Brand | Lenovo |
