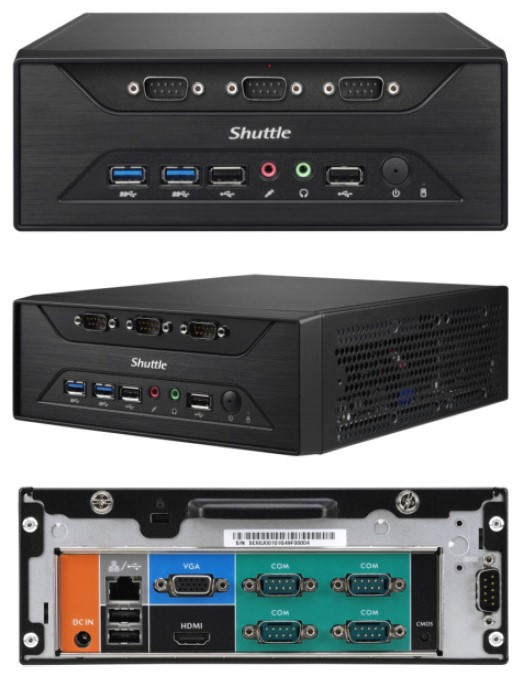

Shuttle XPС slim XC60J, 3L sized PC, PC barebone, Intel SoC, BGA 1296, DDR3L-SDRAM, Serial ATA III
Shuttle XPС slim XC60J. Chassis type: 3L sized PC, Product type: PC barebone. Motherboard chipset: Intel SoC, Processor socket: BGA 1296, BIOS type: UEFI AMI. Supported memory types: DDR3L-SDRAM, Number of memory slots: 2, Maximum internal memory: 8 GB. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Cooling type: Passive. Power supply: 65 W
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J3355 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.5 |
| Processor frequency | 2 |
| Built-in processor | Yes |
| Processor lithography | 14 |
| Thermal Design Power (TDP) | 10 |
| Processor codename | Apollo Lake |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 |
| Supported memory types | DDR3L-SDRAM |
| Memory voltage | 1.35 |
| ECC | No |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5 |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Card reader integrated | No |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 500 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I211 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 8 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 2.0 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express configurations | 1x2+2x1, 4x1 |
| Design | |
| Chassis type | 3L sized PC |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | PC barebone |
| Safety | CB, BSMI, ETL, CCC |
| Performance | |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1296 |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Audio system | HD |
| Processor special features | |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | Yes |
| Intel Rapid Storage Technology | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Smart Connect Technology | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| Intel Clear Video Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Certificates | |
| Certification | FCC, CE, BSMI, RCM, VCCI, R&TTE, RoHS, ErP |
| Software | |
| Compatible operating systems | - Windows 10 64-bit - Linux 64-bit |
| Operating system installed | No |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 65 |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| AC adapter output voltage | 19 |
| AC adapter output current | 3.42 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 238 |
| Depth | 200 |
| Height | 72 |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
Specifications
| Brand | Shuttle |
