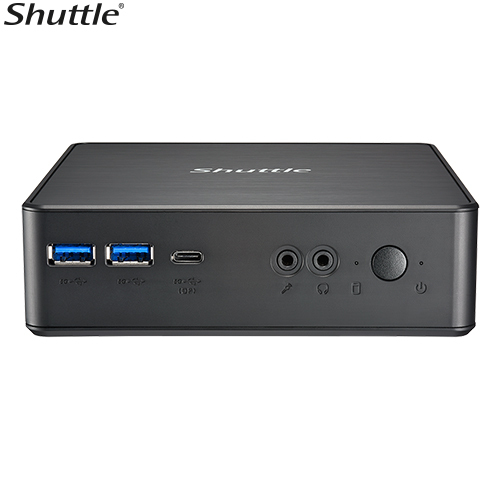

Shuttle XPC Nano PC NC40U, Intel Celeron 7305U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2, 1x 2.5" bay, 2x M.2, 1x LAN, RAID, 24/7 permanent operation, incl. VESA & Stand, 0.84L sized PC, Mini PC barebone, Intel SoC, DDR4-SDRAM, PCI Express, Serial ATA III, 65 W
Shuttle XPC Nano PC NC40U, Intel Celeron 7305U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2, 1x 2.5" bay, 2x M.2, 1x LAN, RAID, 24/7 permanent operation, incl. VESA & Stand. Chassis type: 0.84L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC, BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Cooling type: Active. Power supply: 65 W
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 7305 |
| Processor cores | 5 |
| Processor threads | 5 |
| Processor frequency | 1.1 |
| Performance cores | 1 |
| Efficient cores | 4 |
| Built-in processor | Yes |
| Processor cache | 8 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 |
| Supported memory clock speeds | 3200 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 3 |
| Card reader integrated | No |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum resolution | 7680 x 4320 |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 3.0, 4.0 |
| Number of M.2 (M) slots | 2 |
| Design | |
| Chassis type | 0.84L sized PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 |
| Product type | Mini PC barebone |
| Safety | CB IEC60950/62368, cTUVus (UL 62368) |
| Performance | |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| BIOS type | AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 65 |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| AC adapter output voltage | 19 |
| AC adapter output current | 3.42 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 142 |
| Depth | 142 |
| Height | 42 |
| Weight | 400 |
| Package weight | 1.2 |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
Specifications
| Brand | Shuttle |
