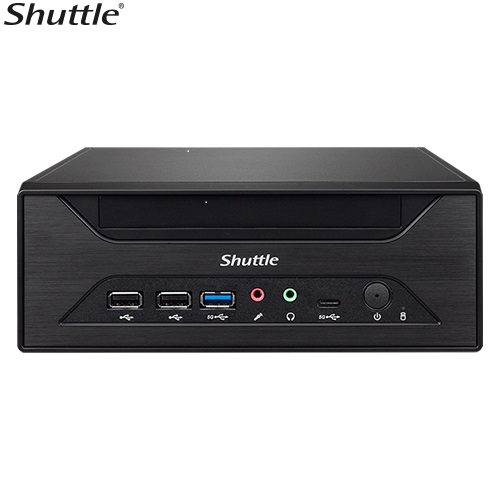

Shuttle XPС slim XPC slim Barebone XH610G2 - S1700, Intel H610, 1xDP, 2xHDMI, 2 PCIe Slots (1x 16X & 1x X1), 2x Intel LAN (1G + 2.5G), 8x USB, 1x 2.5", 3x M.2, 24/7 permanent operation, Desktop, PC barebone, Intel H610, LGA 1700, DDR5-SDRAM, PCI Express, Serial ATA III
Shuttle XPС slim XPC slim Barebone XH610G2 - S1700, Intel H610, 1xDP, 2xHDMI, 2 PCIe Slots (1x 16X & 1x X1), 2x Intel LAN (1G + 2.5G), 8x USB, 1x 2.5", 3x M.2, 24/7 permanent operation. Chassis type: Desktop, Product type: PC barebone. Motherboard chipset: Intel H610, Processor socket: LGA 1700, BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 180 W
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Built-in processor | No |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 |
| Supported memory clock speeds | 5600 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 |
| Non-ECC | Yes |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219-LM, Intel I226-LM |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Design | |
| Chassis type | Desktop |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| Product type | PC barebone |
| Performance | |
| Motherboard chipset | Intel H610 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 |
| Audio chip | Realtek ALC888S |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported | Windows 11 |
| Linux operating systems supported | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 180 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| AC adapter output voltage | 19.5 |
| AC adapter output current | 9.23 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 250 |
| Depth | 200 |
| Height | 95 |
| Weight | 2.98 |
| Package weight | 3.49 |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Other features | |
| Country of origin | China |
Specifications
| Brand | Shuttle |
