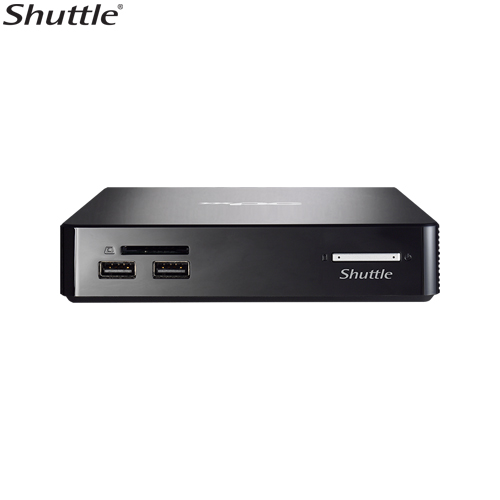

Shuttle XPC nano NS02AV2, Rockchip, RK3368, 2 GB, DDR3L-SDRAM, 16 GB, Android 8.1
Shuttle XPC nano NS02AV2. Processor family: Rockchip, Processor model: RK3368. Internal memory: 2 GB, Internal memory type: DDR3L-SDRAM. Total storage capacity: 16 GB, Storage media: eMMC, Card reader integrated. Wi-Fi. Operating system installed: Android 8.1. Power supply: 24 W. Chassis type: Nettop. Product type: Mini PC. Weight: 270 g. Product colour: Black
| Processor | |
|---|---|
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3368 |
| Processor cores | 8 |
| Processor boost frequency | 1.5 |
| Memory | |
| Internal memory | 2 |
| Maximum internal memory | 2 |
| Internal memory type | DDR3L-SDRAM |
| Storage | |
| Total storage capacity | 16 |
| Storage media | eMMC |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| Graphics card Open GL support | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wake-on-LAN ready | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| DC-in jack | Yes |
| Design | |
| Chassis type | Nettop |
| Volume | 0.577 |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Plastic |
| Performance | |
| Password protection | Yes |
| Product type | Mini PC |
| Software | |
| Operating system installed | Android 8.1 |
| Power | |
| Power supply | 24 |
| Power supply input voltage | 100 - 240 |
| Power supply input frequency | 50 - 60 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, BSMI, RCM, VCCI |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width | 141 |
| Depth | 141 |
| Height | 29 |
| Weight | 270 |
| Packaging data | |
| Package weight | 650 |
| Packaging content | |
| VESA mount included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| Display | |
| Display included | No |
Specifications
| Brand | Shuttle |
