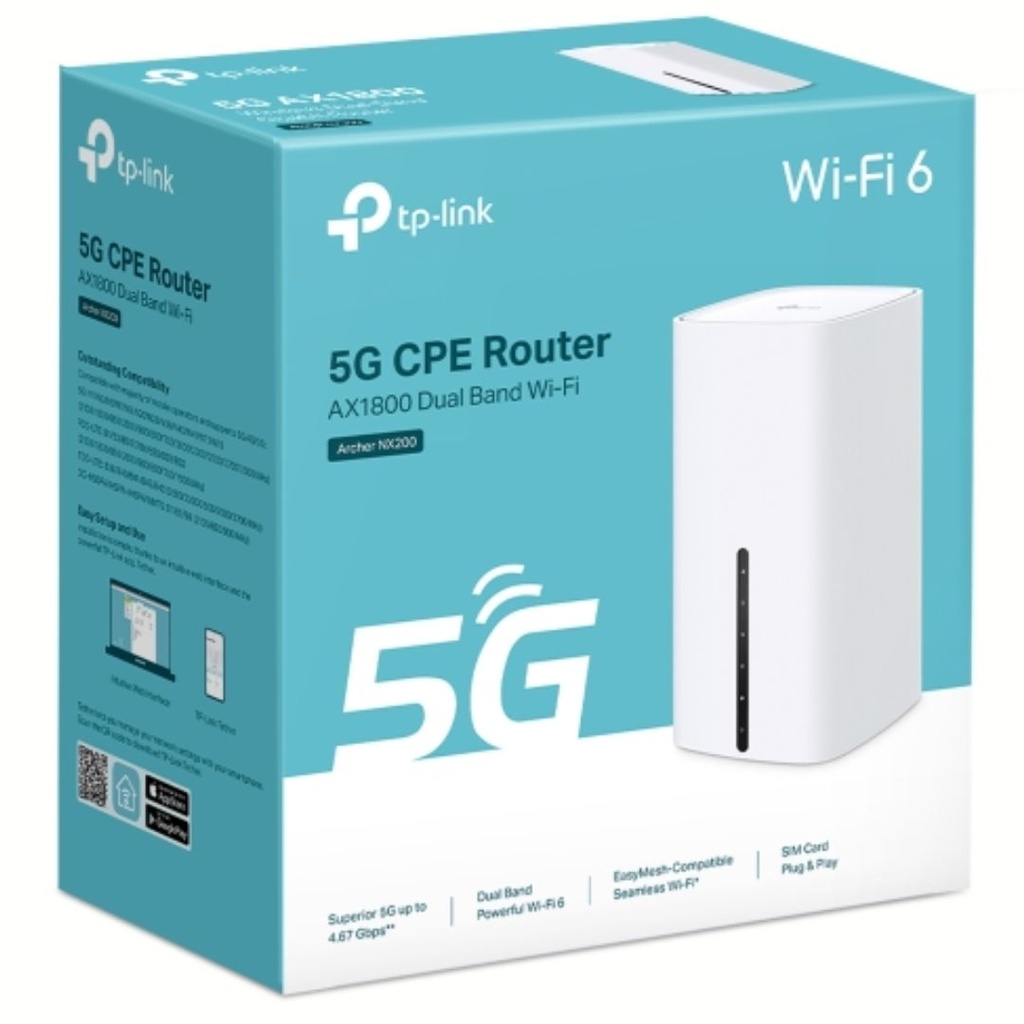

TP-Link Archer NX200, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, 5G, White, Tabletop router
TP-Link Archer NX200. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1201 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, VPN support: PPTP VPN, IPSec VPN , OpenVPN. Mobile network generation: 5G, 3G standards: DC-HSDPA, HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: IPv4 SPI Firewall, IPv6 Firewal
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1201 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 |
| WLAN data transfer rate (second band) | 1201 |
| Modulation | 1024-QAM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| VPN support | PPTP VPN, IPSec VPN , OpenVPN |
| Mobile network | |
| Mobile network generation | 5G |
| 3G standards | DC-HSDPA, HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 5G bands supported | 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 |
| 4G bands supported | 700,800,850,900,1500,1800,2100,2300,2500,2600,3500,3700 |
| 3G bands supported | 850,900,2100 |
| SIM card type | NanoSIM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| Management features | |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Firewall security | IPv4 SPI Firewall, IPv6 Firewal |
| Access Control List (ACL) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | White |
| On/off switch | Yes |
| Product type | Tabletop router |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | Internal |
| Antennas quantity | 10 |
| Detachable antenna(s) | Yes |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Output voltage | 12 |
| Output current | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| System requirements | |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 99 |
| Depth | 99 |
| Height | 190 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
