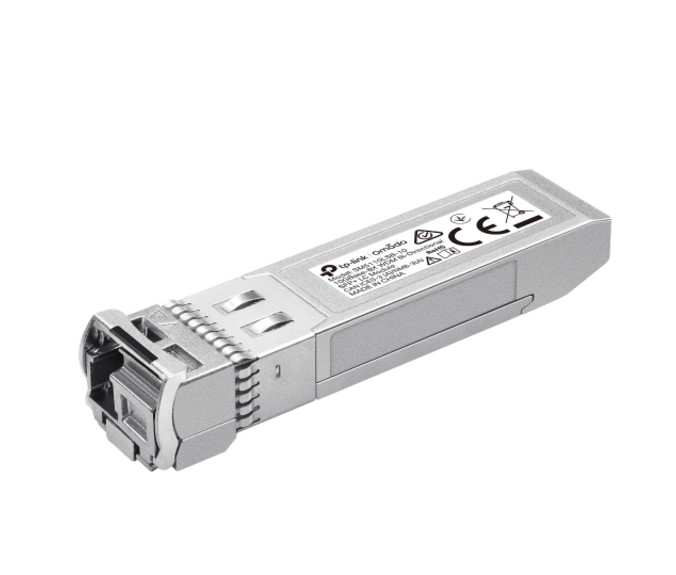

TP-Link Omada SM5110LSB-10, Fiber optic, 10312 Mbit/s, SFP+, LC (UPC), 9/125 µm, 10000 m
TP-Link Omada SM5110LSB-10. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10312 Mbit/s, Interface type: SFP+. Product colour: Silver. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Width: 57 mm, Depth: 14 mm, Height: 12 mm
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10312 |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Maximum transfer distance | 10000 |
| Tx wavelength (max) | 1270 |
| Rx wavelength (max) | 1330 |
| Networking standards | IEEE 802.3ae |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions | |
| Minimum operating temperature | 0 |
| Maximum operating temperature | 70 |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 57 |
| Depth | 14 |
| Height | 12 |
| Packaging content | |
| Quantity per pack | 1 |
| Manual | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
