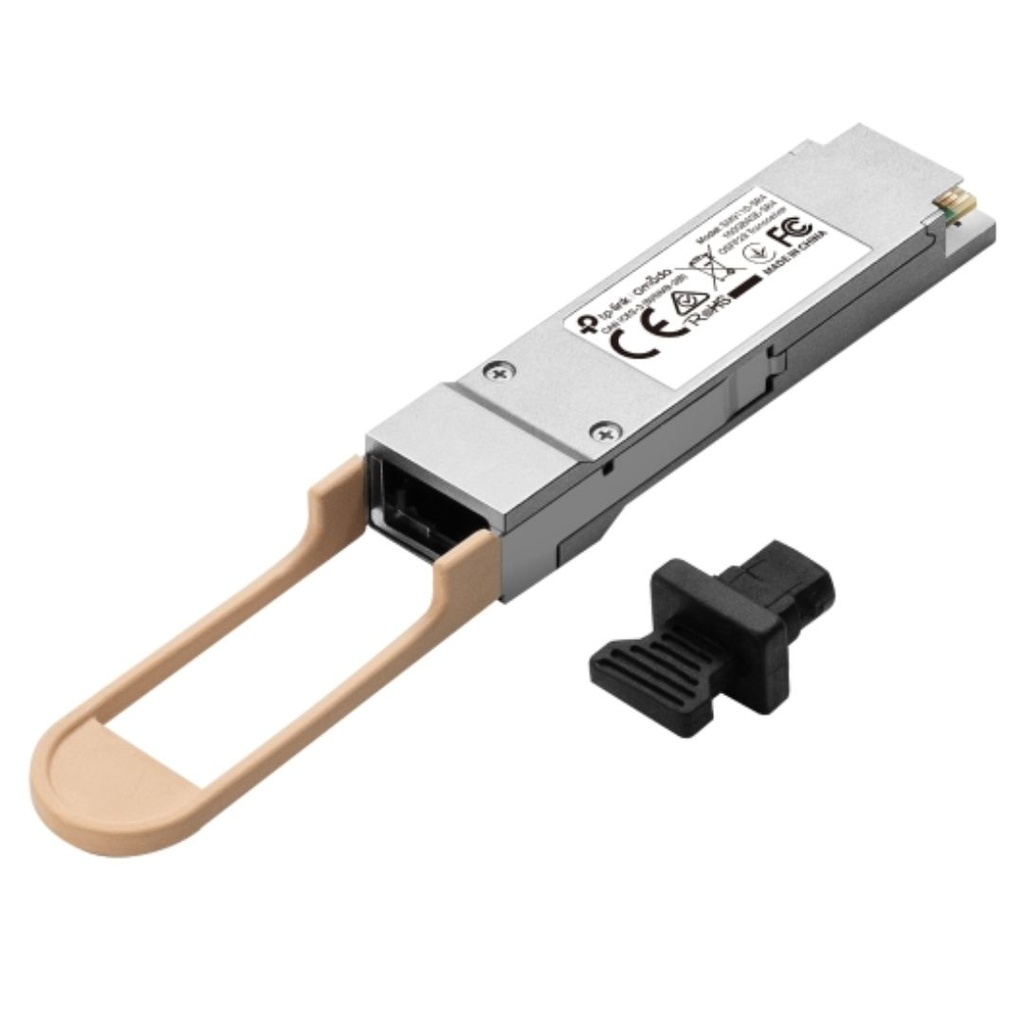

TP-Link Omada SM9110-SR4, Fiber optic, 100000 Mbit/s, QSFP28, MPO-12, MTP, 50/125 µm, SR4
TP-Link Omada SM9110-SR4. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP28. Product colour: Metallic, Form factor: QSFP28. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP. Width: 124 mm, Depth: 18.4 mm, Height: 11.7 mm
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO-12, MTP |
| Fiber cable diameters supported (core/cladding) | 50/125 |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 |
| Wavelength | 850 |
| Tx power (min) | -8.4 |
| Tx power (max) | 2.4 |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Fiber ethernet cabling technology | 40GBASE, 100GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Metallic |
| Form factor | QSFP28 |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP |
| Operational conditions | |
| Minimum operating temperature | 0 |
| Maximum operating temperature | 70 |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 0 - 85 |
| Storage relative humidity (H-H) | 0 - 85 |
| Weight & dimensions | |
| Width | 124 |
| Depth | 18.4 |
| Height | 11.7 |
| Packaging content | |
| Quantity per pack | 1 |
| Packaging data | |
| User guide | Yes |
| Logistics data | |
| Country of origin | China |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
