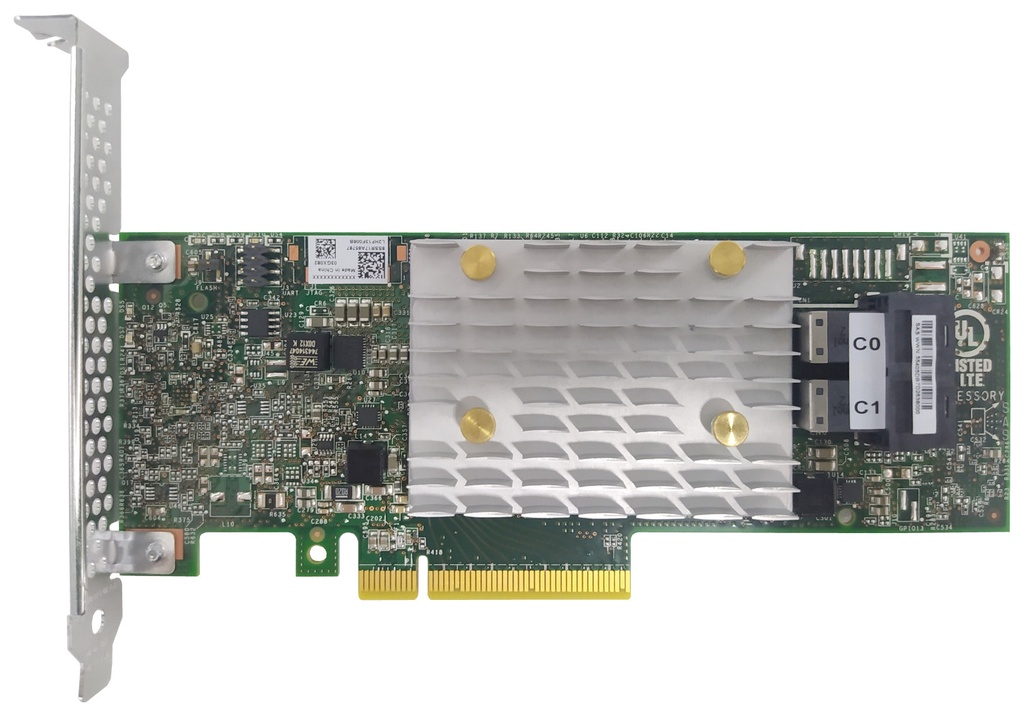

889488588008 LENOVO ThinkSystem RAID 5350-8i PCIe 12Gb Adapter

889488588008 LENOVO ThinkSystem RAID 5350-8i PCIe 12Gb Adapter

(0 review)

Product Code: 889488588008

The ThinkSystem RAID 5350-8i combines uncompromised HBA functionality with basic RAID support in hardware using the PM8222 SmartIOC 2100 controller. The adapter provides high levels of storage performance and scalability. The 8-port adapter can achieve up to 1.5M IOPS (random read using 4KB blocks).
Form factors
PCIe low profile
Controller chip
Adaptec PM8222 SmartIOC 2100
Adaptec equivalent
Adaptec SmartHBA 2100-8i
Host interface
PCIe 3.0 x8
Port interface
12 Gb SAS
Number of ports
8
Port connectors
2x Mini-SAS HD x4 (SFF-8643)
Drive interface
SAS, SATA
Drive type
HDD, SSD
Hot-swap drives
Yes
Max devices
8
RAID levels
0, 1, 10, 5
JBOD mode (HBA mode / Raw)
Yes
Cache
None
SED support
Yes

$ 420.00 $ 420.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Lenovo 4Y37A72482, SAS, Serial ATA, PCI Express x8, 0, 1, 5, 10, 50, 12 Gbit/s, Adaptec PM8222 SmartIOC 2100, FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) ...

Lenovo 4Y37A72482. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 0, 1, 5, 10, 50, Data transfer rate: 12 Gbit/s, Chipset: Adaptec PM8222 SmartIOC 2100. Width: 167 mm, Height: 64 mm

Ports & interfaces
Supported storage drive interfacesSAS, Serial ATA
Host interfacePCI Express x8
PCI Express slots version3.0
Internal mini-SAS HD ports2
Performance
RAID levels0, 1, 5, 10, 50
Data transfer rate12
ChipsetAdaptec PM8222 SmartIOC 2100
JBOD functionYes
S.M.A.R.T. supportYes
Hot-swapYes
CertificationFCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B)
Operational conditions
Operating temperature (T-T)0 - 55
Operating relative humidity (H-H)20 - 80
Weight & dimensions
Width167
Height64

Specifications

Brand Lenovo
