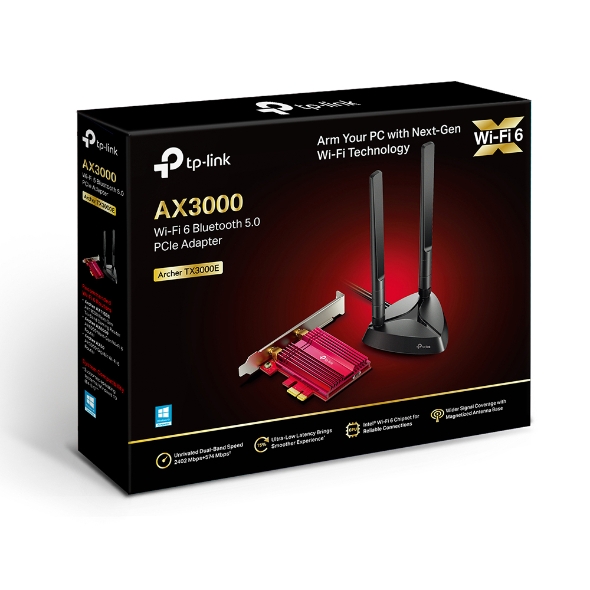

TP-Link Archer TX3000E, Internal, Wireless, PCI Express, WLAN / Bluetooth, 2402 Mbit/s, Black, Red
TP-Link Archer TX3000E. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2402 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Red
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| Network | |
| Maximum data transfer rate | 2402 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 54,300,574,1733,2402 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Design | |
| Component for | PC |
| Product colour | Black, Red |
| Internal | Yes |
| Antenna | Yes |
| Antenna design | External |
| Transmitting power (CE) | 23 |
| Transmitting power (FCC) | 27 |
| Chipset | Intel Wi-Fi 6 |
| Receiver sensitivity | 5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm |
| Operating modes | Infrastructure mode |
| System requirements | |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 95.2 |
| Depth | 120.8 |
| Height | 21.5 |
| Packaging data | |
| Package width | 270 |
| Package depth | 215 |
| Package height | 47 |
| Package weight | 480 |
| Packaging content | |
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Bluetooth header cable | Yes |
| Quick installation guide | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
