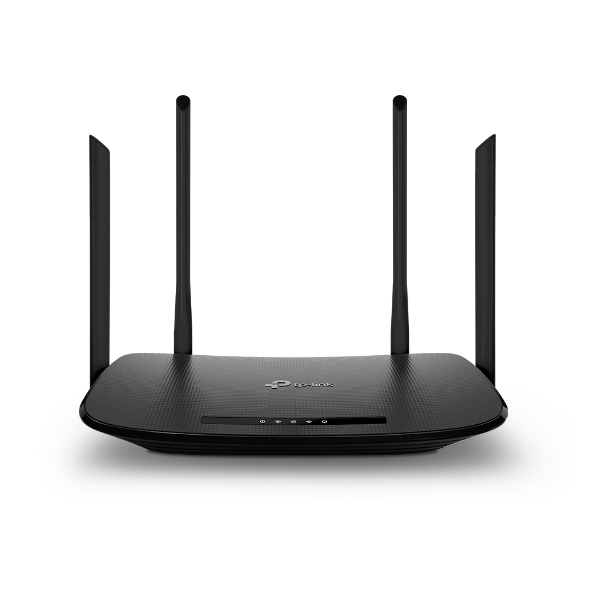

TP-Link AC1200 Wireless VDSL/ADSL Modem Router, Wi-Fi 5 (802.11ac), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, VDSL2, Black, Tabletop router
TP-Link AC1200 Wireless VDSL/ADSL Modem Router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h. Security algorithms: IPSec, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Product type: Tabletop router, Product colour: Black. Certification: CE, RoHS, RCM
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 300 |
| WLAN data transfer rate (second band) | 867 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Dynamic DNS (DDNS) | Yes |
| VPN Passthrough | Yes |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b) | 20 |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g) | 20 |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 |
| Mobile network | |
| 3G | No |
| 4G | No |
| DSL features | |
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| RJ-11 ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | IPSec, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Tabletop router |
| Certificates | |
| Certification | CE, RoHS, RCM |
| Packaging content | |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 4 |
| Power | |
| Output voltage | 12 |
| Output current | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Weight & dimensions | |
| Width | 385 |
| Depth | 76 |
| Height | 290 |
| Packaging data | |
| Package width | 330 |
| Package depth | 240 |
| Package height | 76 |
| Package weight | 840 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
